Rental (1) Ahem Future Series Dugong 1400 Apron A Series Assembly 1-8 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1400 Assembly 1 Apron A 1400 series

1411 Part  A 111 138 139 140 Apron hinge 10mm 1400s
Rental 150 minutes / 3800 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 335 x 300 millimetres.

1412 Part  B 111 138 139 140 Apron hinge 10mm 1400s
Rental 180 minutes / 4300 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 175 x 660 millimetres.

1413 Part  C 111 138 139 140 Apron hinge 10mm 1400s
Rental 120 minutes / 2900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 665 x 330 millimetres.

1414 Part 101 Apron hinge plate 10mm 1400s
Rental 150 minutes / 3400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1365 x 280 millimetres.

1415 Part 102 Apron hinge 10mm 1400s
Rental 120 minutes / 2900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 755 x 260 millimetres.

1416 Part 103 Apron plate 10mm 1400s
Rental 180 minutes / 4500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1375 x 135 millimetres.

1417 Part 104 Apron ram plate 10mm 1400s
Rental 180 minutes / 4200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1375 x 200 millimetres.

1418 Part 105 Apron side 10mm 1400s
Rental 300 minutes / 8300 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 545 x 490 millimetres.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

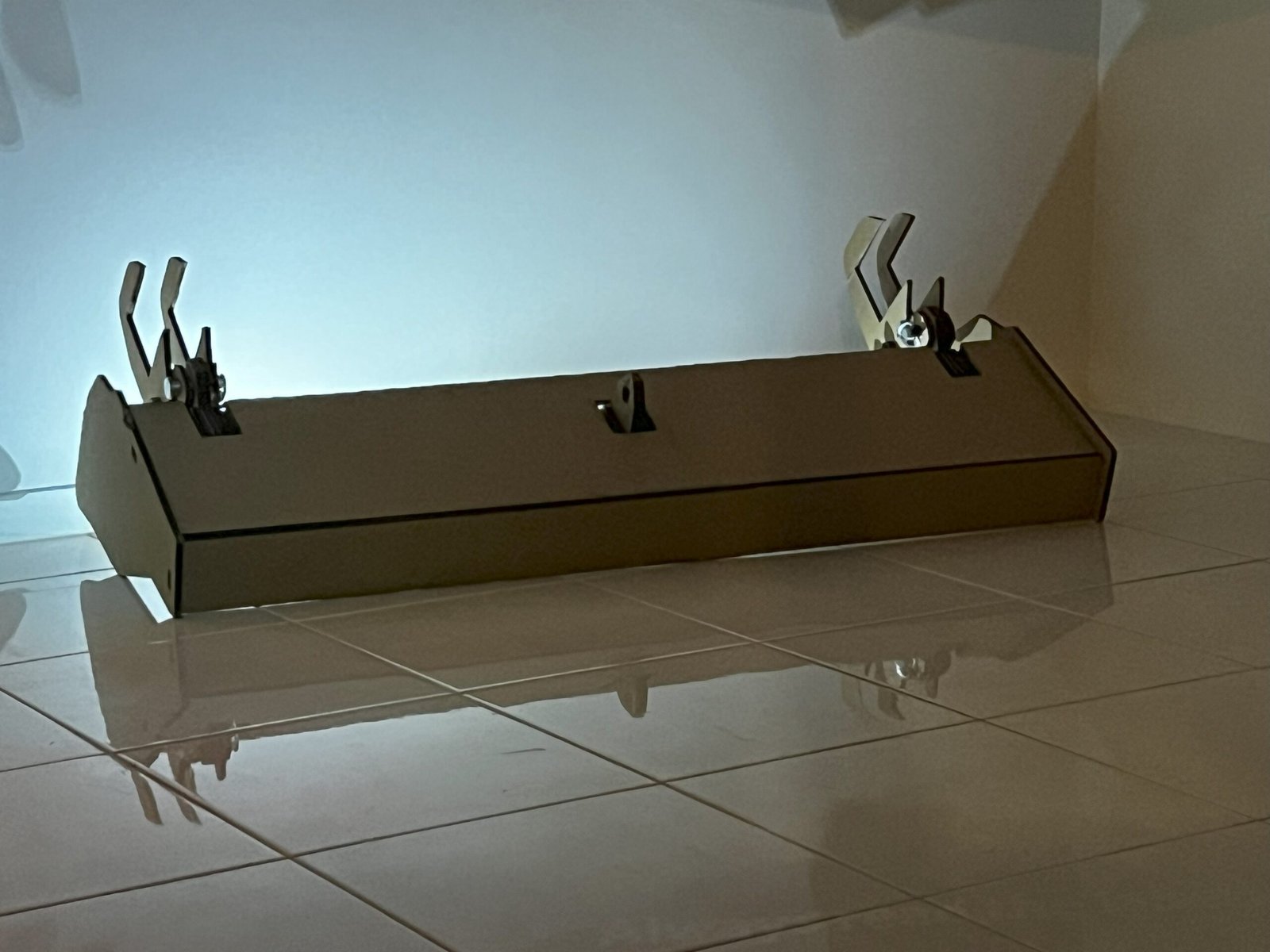

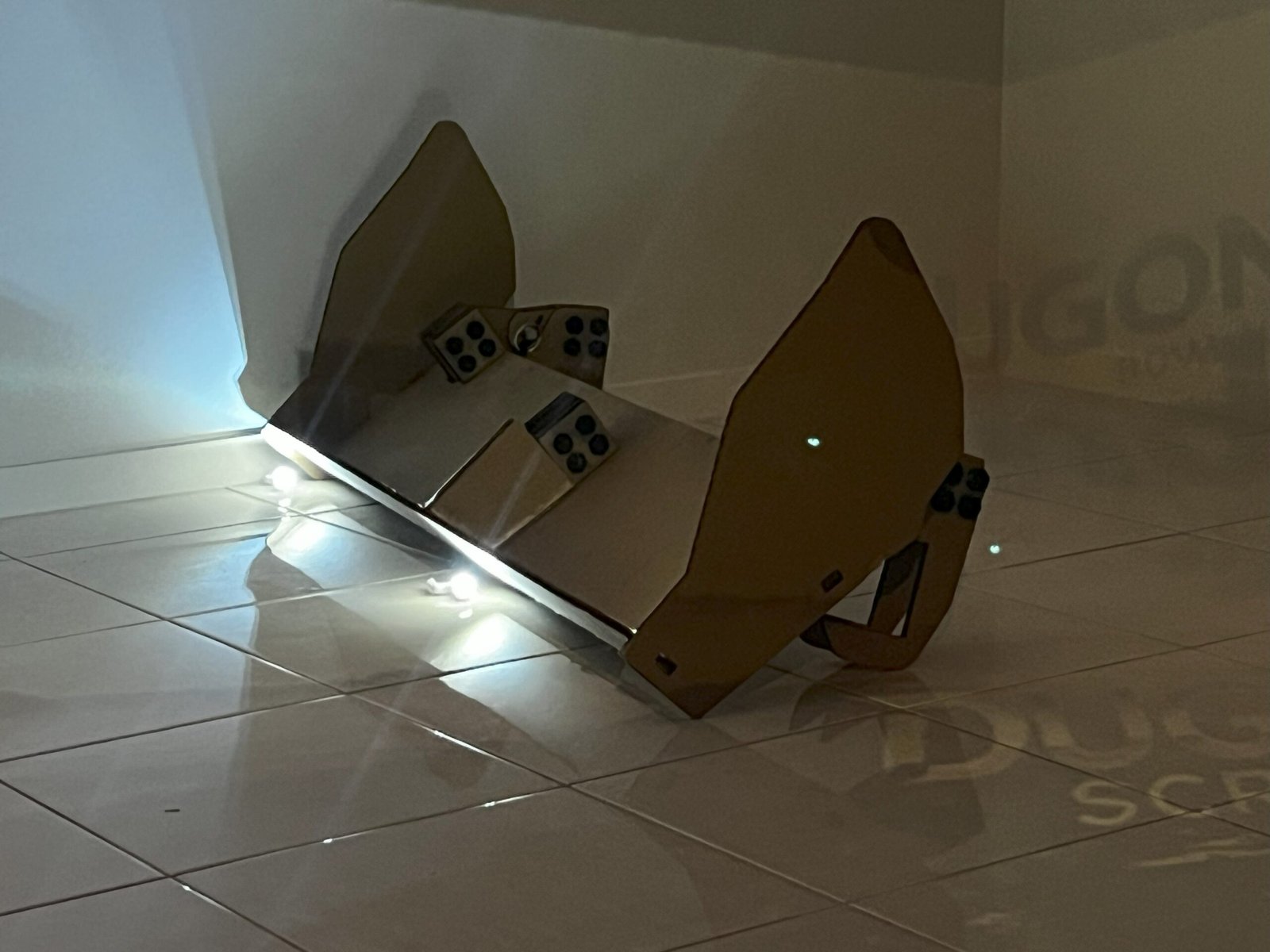

·       Photos can be used to assembly.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
