Rental (8) Ahem Future Series Dugong 1400 Laser GPS Stand Series Assembly 1-9 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1400 Assembly 8 laser GPS stand 1400 series

1481 Part 132 Laser stand side arm 10mm 1400s
Rental 150 minutes / 3600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1500 x 150 millimetres.

1482 Part 154 Stand bolted section 10mm 1400s
Rental 180 minutes / 4200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 340 x 680 millimetres.

1483 Part 160 Tower arms 10mm 1400s
Rental 240 minutes / 6200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1460 x 200 millimetres.

1484 Part 160A Tower tail signal bar  20mm 1400s
Rental 120 minutes / 2100 millimetres drawing line length / steel 350 grade plate 20 millimetres thickness / box of 1020 x 80 millimetres.

1485 Part 160B Tower hydraulic 10mm 1400s
Rental 180 minutes / 4100 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 340 x 440 millimetres.

1486 Part 160C Tower hydraulic 10mm 1400s
Rental 210 minutes / 5400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 410 x 290 millimetres.

1487 Part 160D Tower hydraulic 10mm 1400s
Rental 150 minutes / 3900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 420 x 280 millimetres.

1488 Part 161 Tower platform 10mm 1400s
Rental 90 minutes / 1800 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 350 x 340 millimetres.

1489 Part 162 Tower top side 10mm 1400s
Rental 150 minutes / 3100 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1490 x 100 millimetres.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

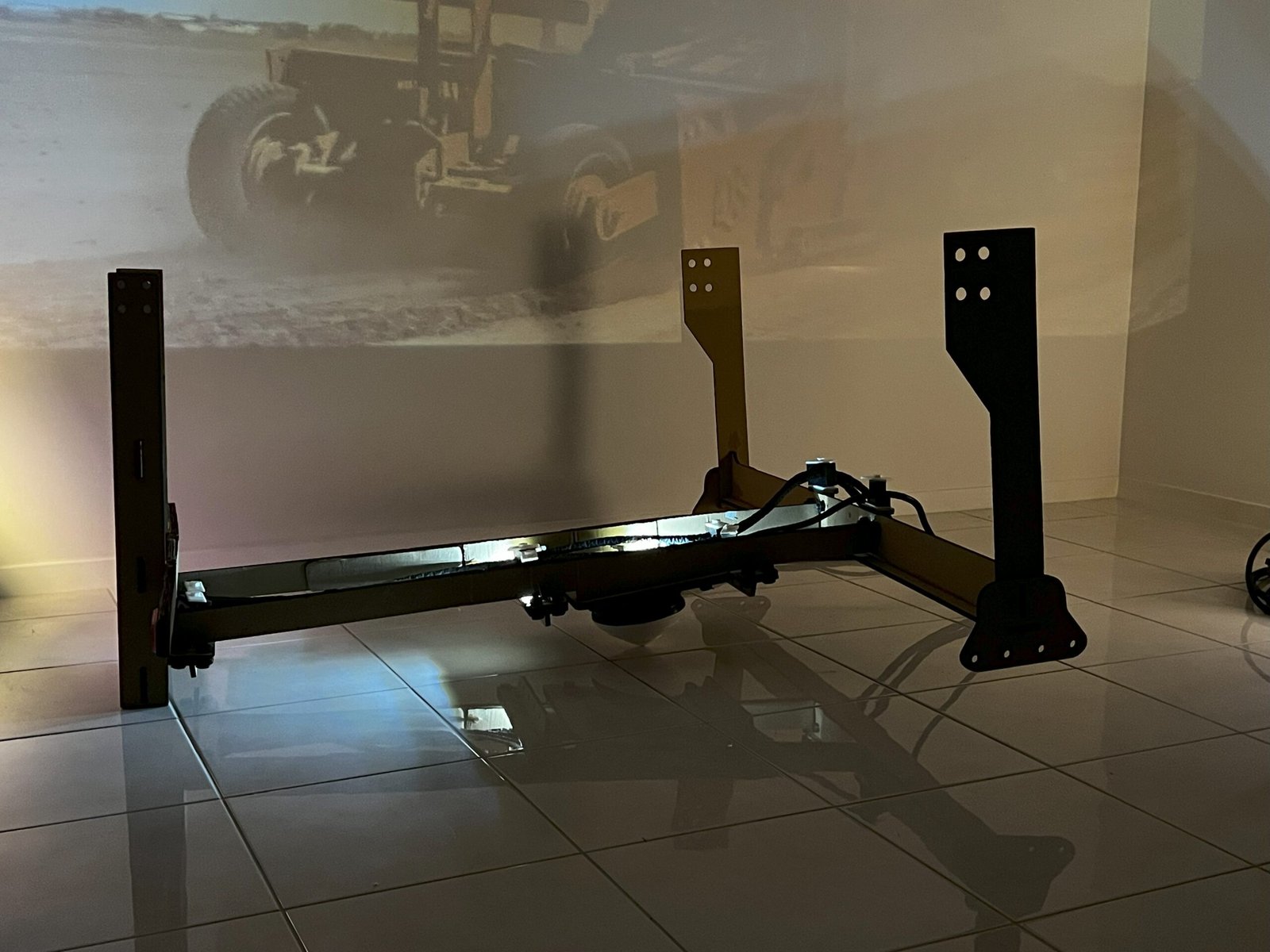

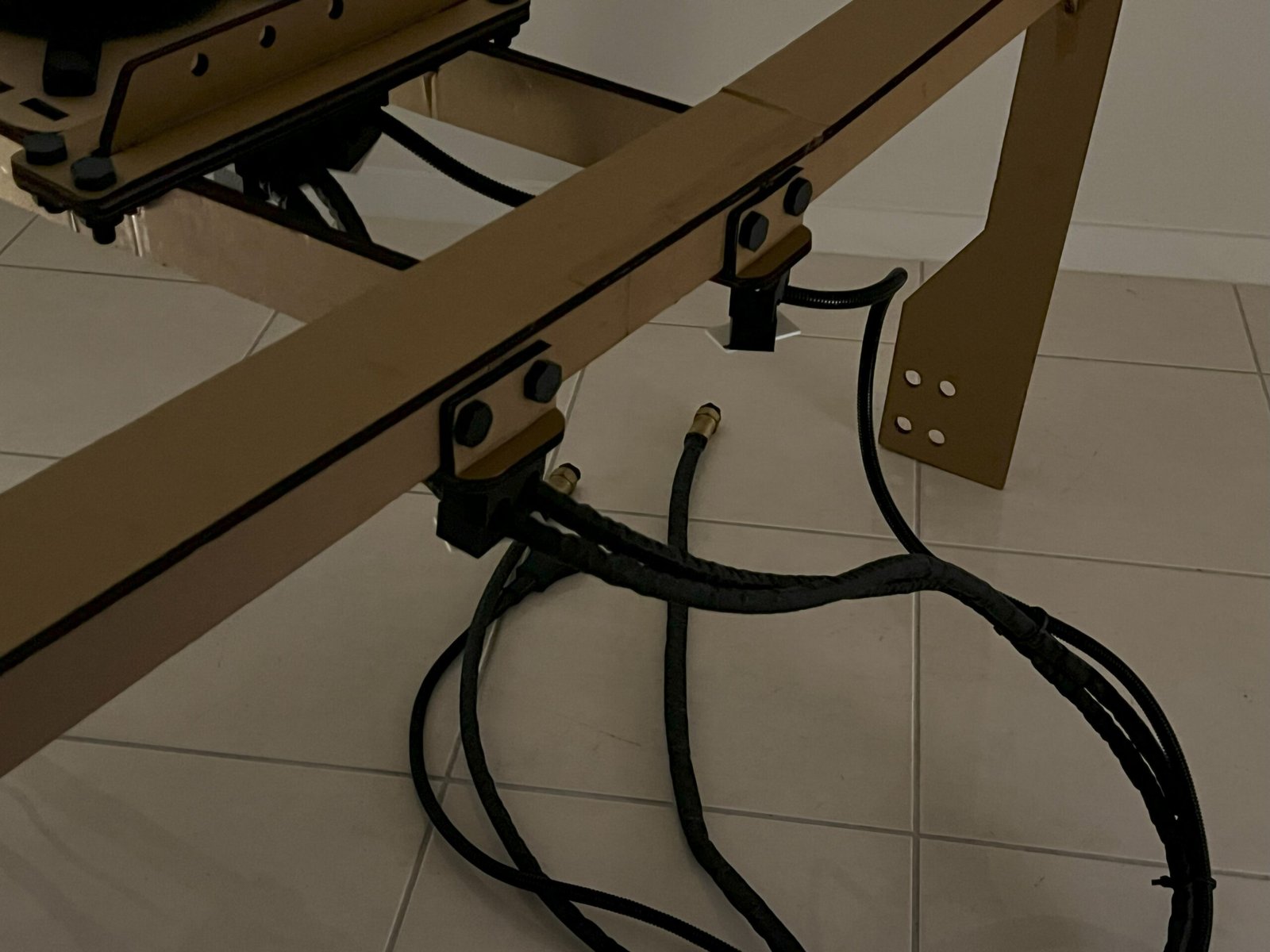

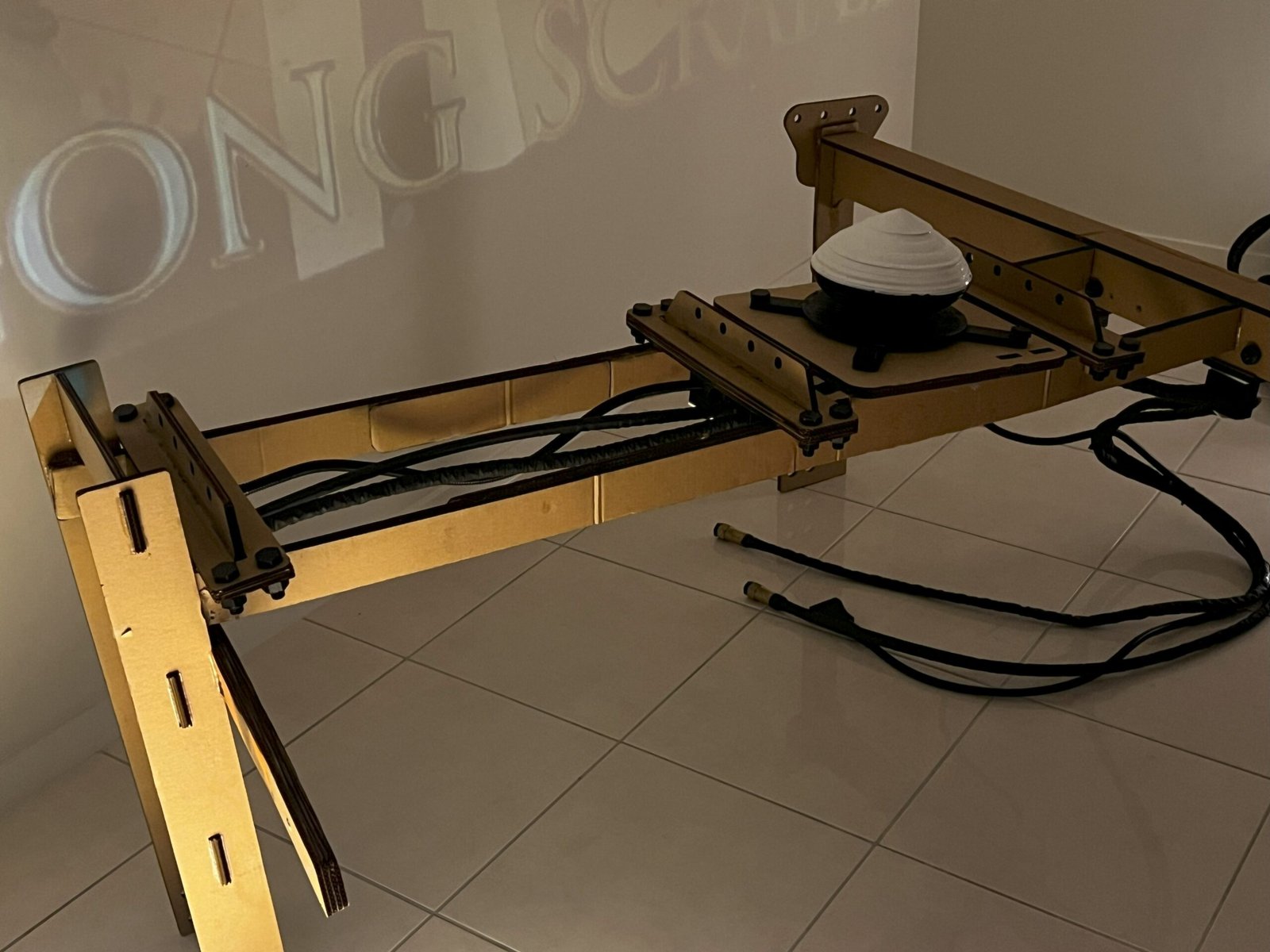

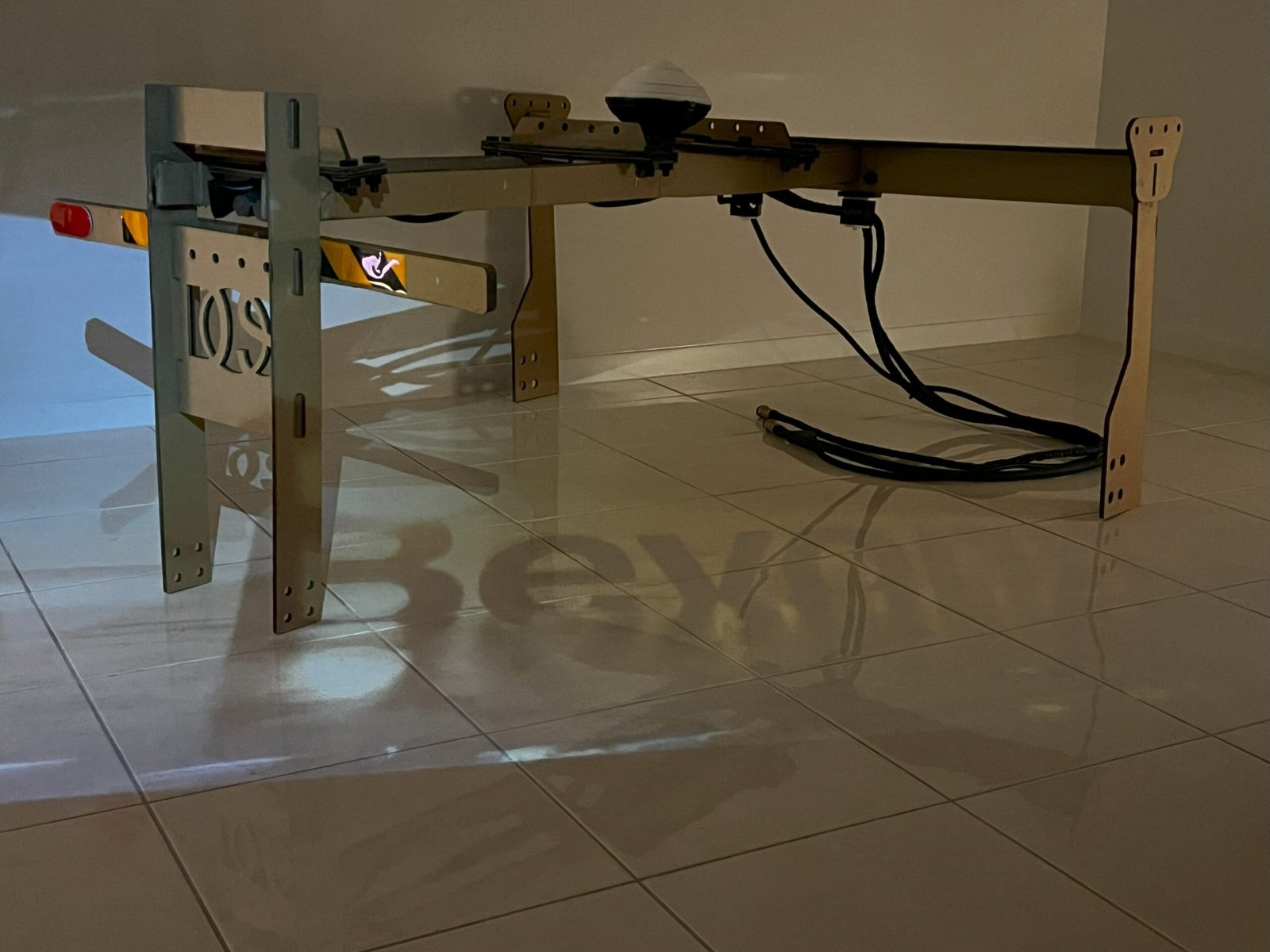

·       Photos can be used to assembly.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
