Description
Windows compatible only. Refer to assemblies for part numbers.
Single Assembly on a USB drive.

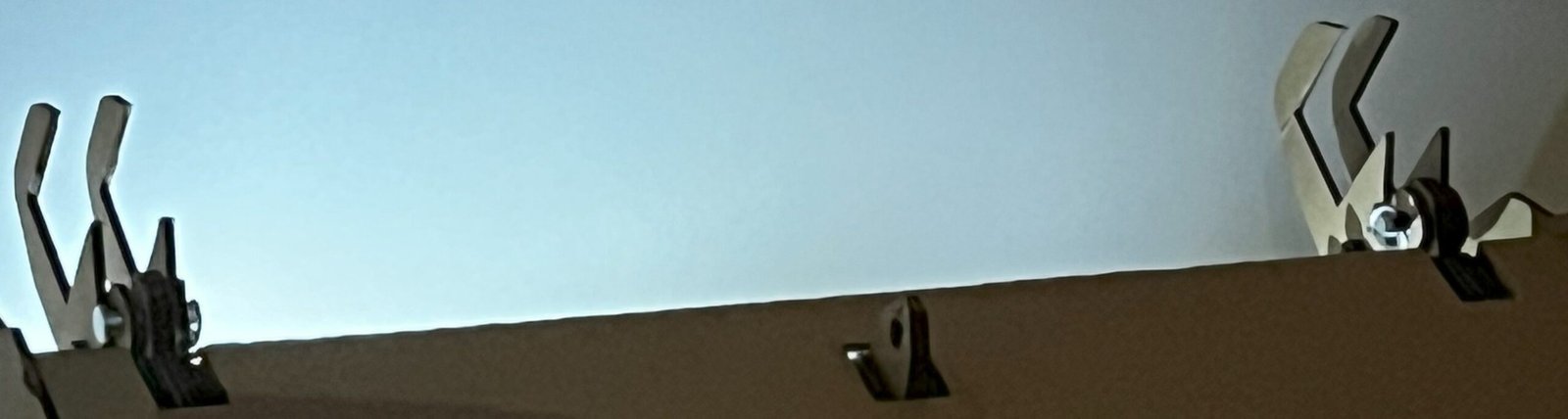

900 Assembly 13 Hinge Wear parts only 900 series
9131 Part 111 138 139 140 For Apron A and B hinge 10mm 900s
Rental 240 minutes / 6500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 190 x 790 millimetres.
9132 Part 135 139 ram tab Main frame wear plate 10mm 900s
Rental 90 minutes / 1600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 530 x 120 millimetres.
Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.
· Photos can be used to assembly.
Rental Agreement – Engineering Drawings & Leaflets
This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.
Full Assembly Listings
Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
