Rental (16) Ahem Future Series 1200 Side Frame Assembly 1-5 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1200 Assembly 16 side frame 1200 series

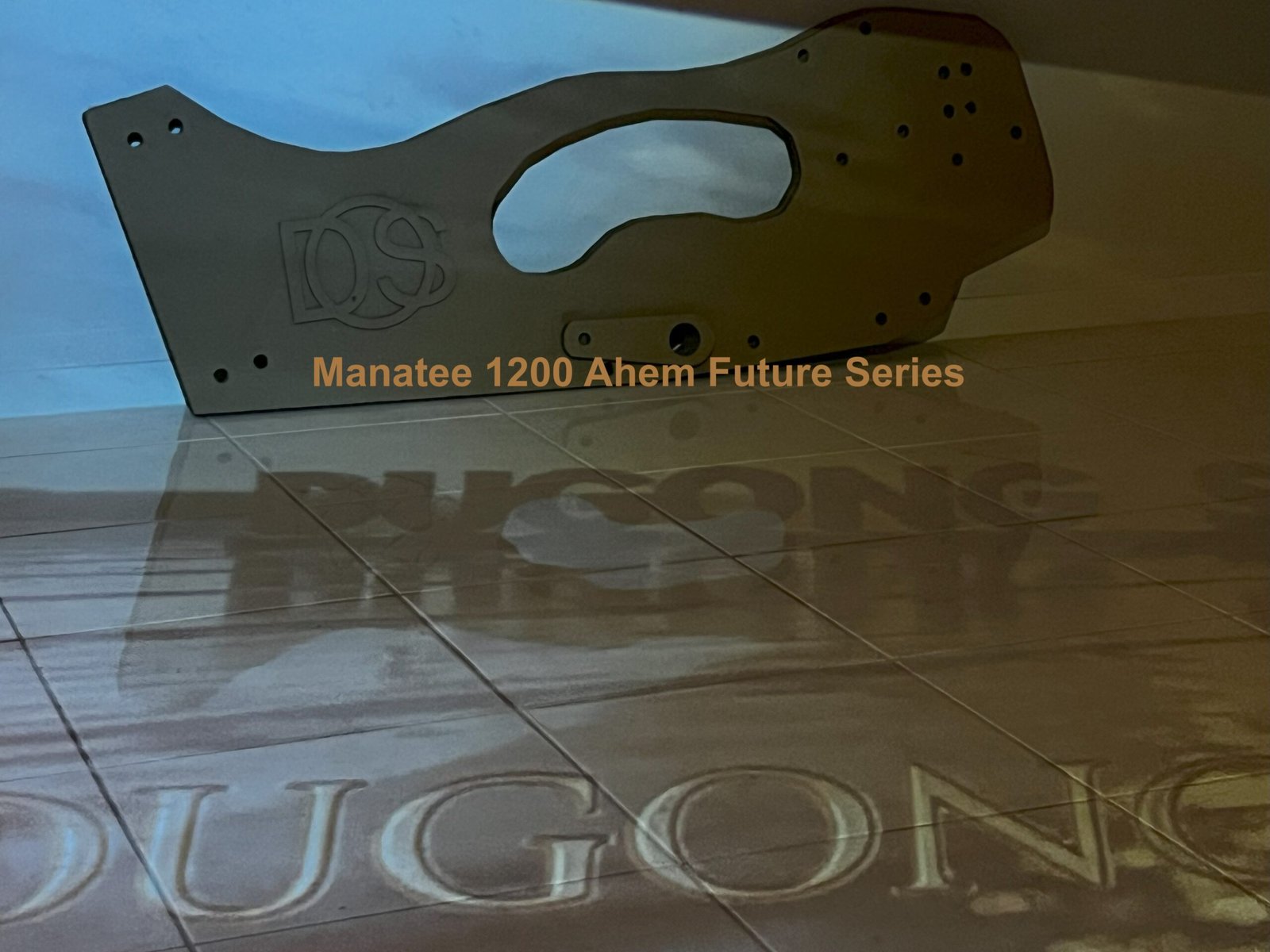

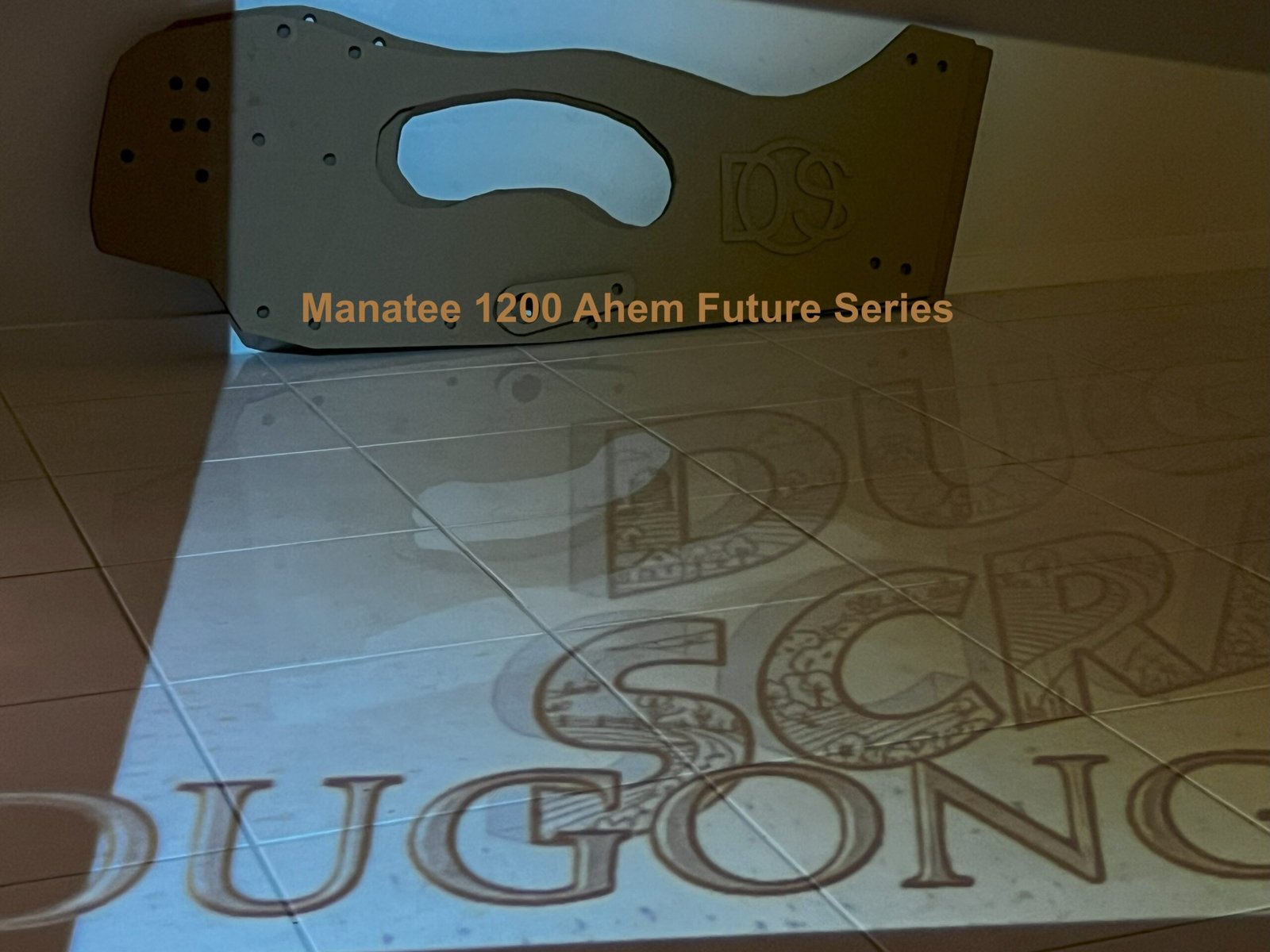

12161 Part 153 Side frame 20mm 1200s
Rental 240 minutes / 6400 millimetres drawing line length / steel 350 grade plate 20 millimetres thickness / box of 1460 x 770 millimetres.

Keywords: Side Frame Assembly, Scraper Side Frame, 1200 Series Scraper, Engineering DXF Files, Industrial Steel Fabrication, Land Levelling Construction, Heavy Duty Industrial Scraper.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

• Photos can be used to assembly.
