Description
Windows compatible only. Refer to assemblies for part numbers.
Single Assembly on a USB drive.

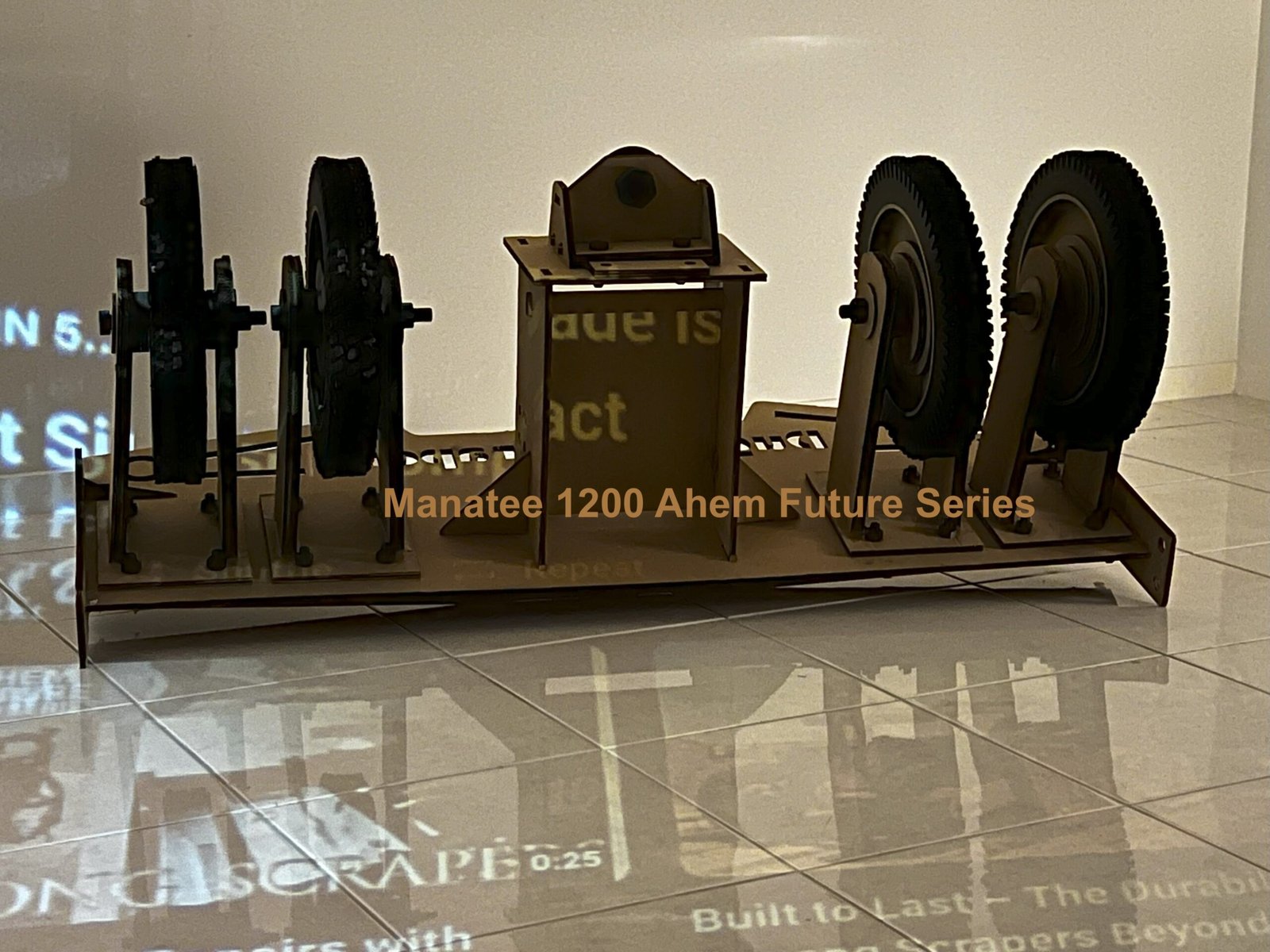

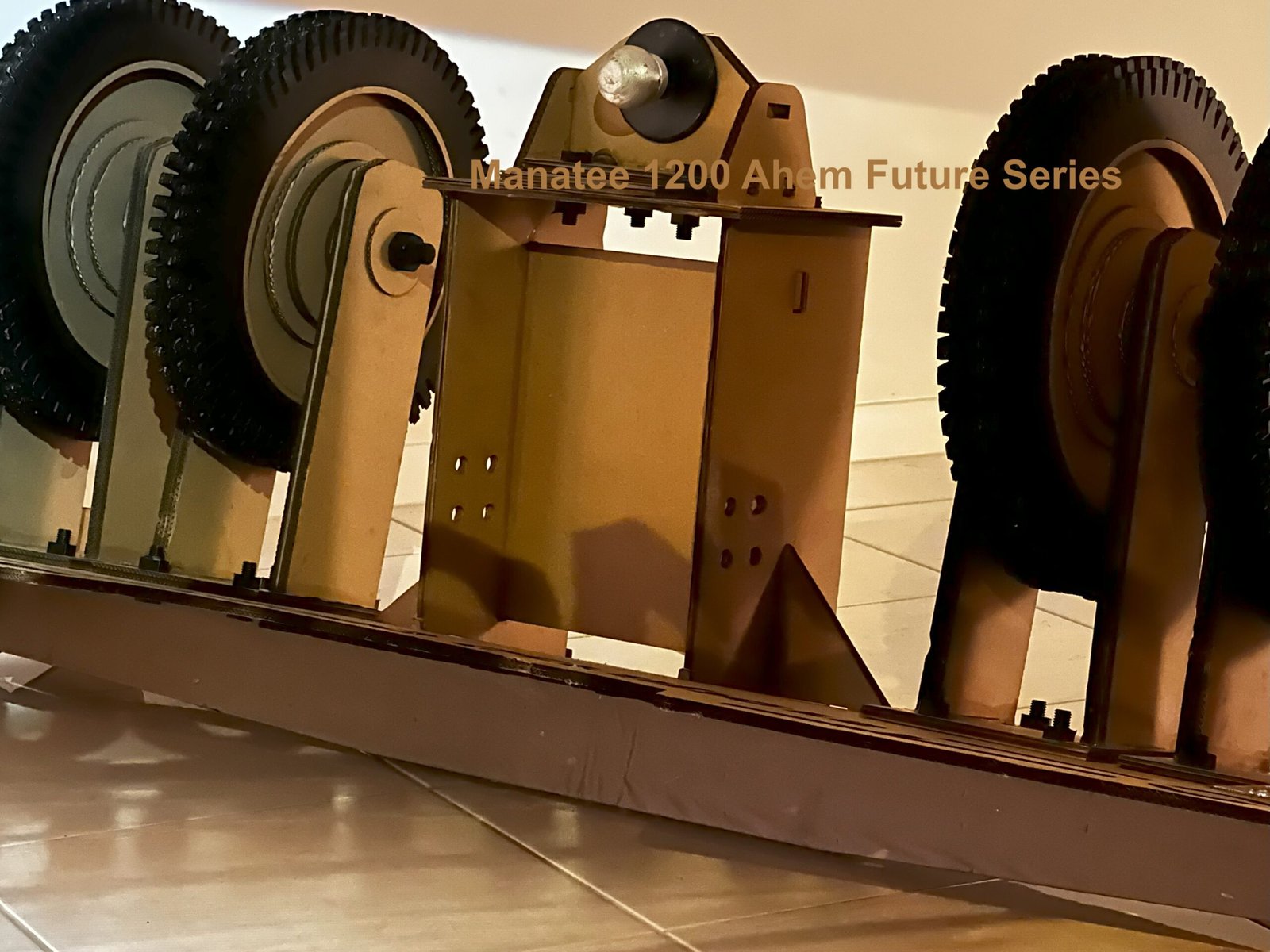

1200 Assembly 12 Rear pull 1200 series
12121 Part 130 Hose cross rack 10mm 1200s
Rental 90 minutes / 1500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 330 x 410 millimetres.
Keywords: Rear Pull Assembly, Scraper Towing Parts, 1200 Series Scraper, Engineering DXF Files, Industrial Steel Fabrication, Land Levelling Construction.
Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.
· Photos can be used to assembly.
