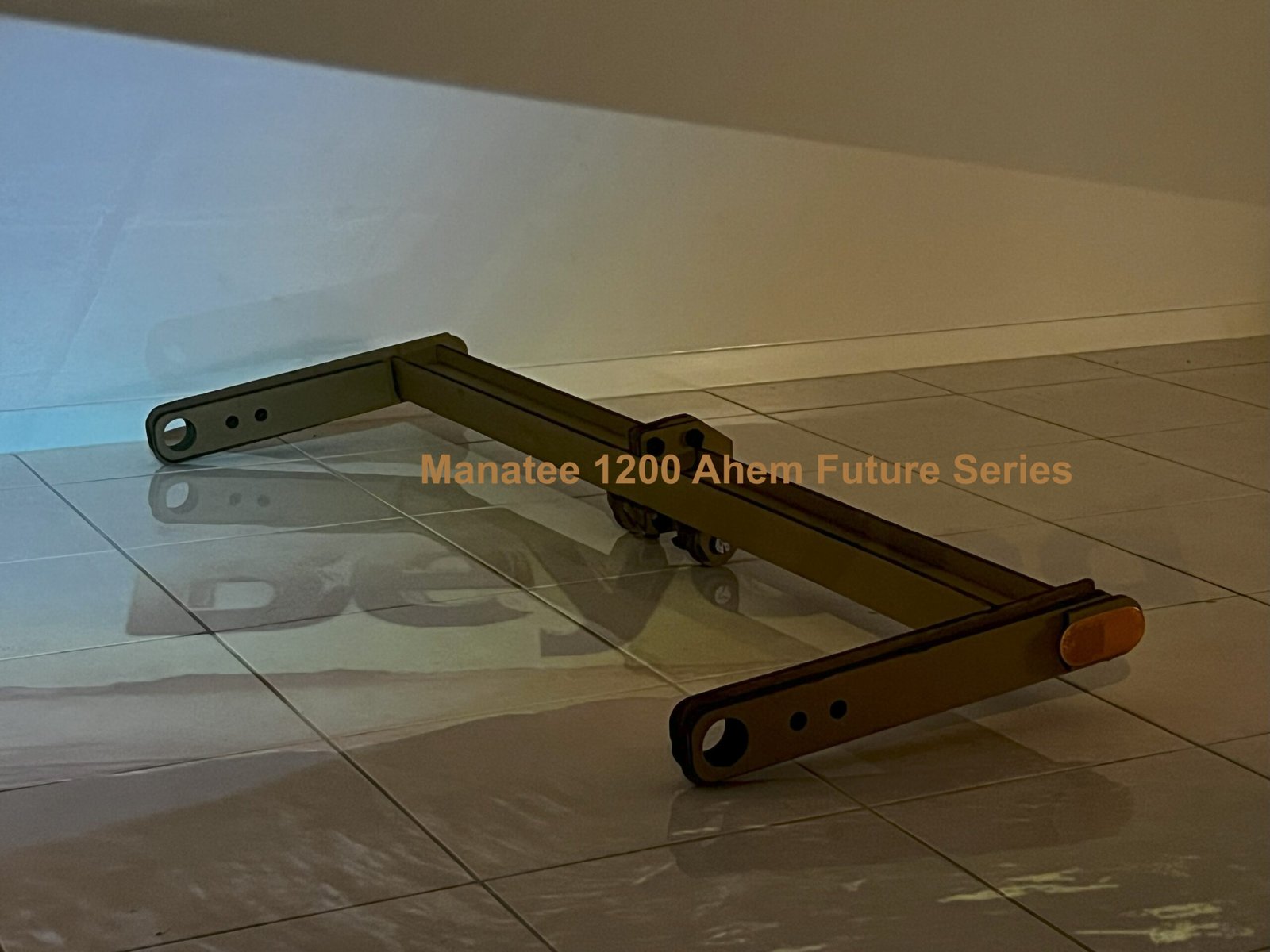

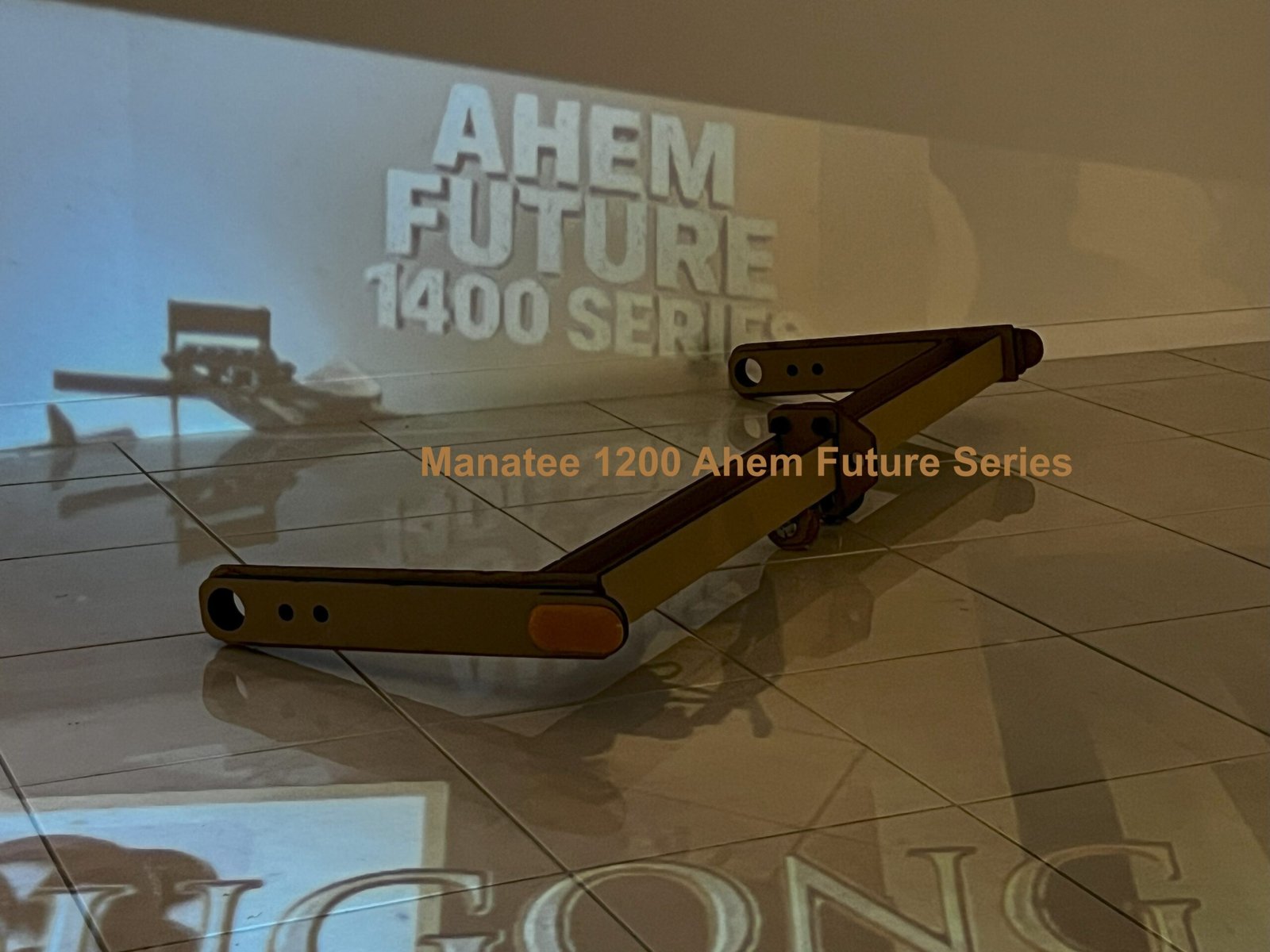

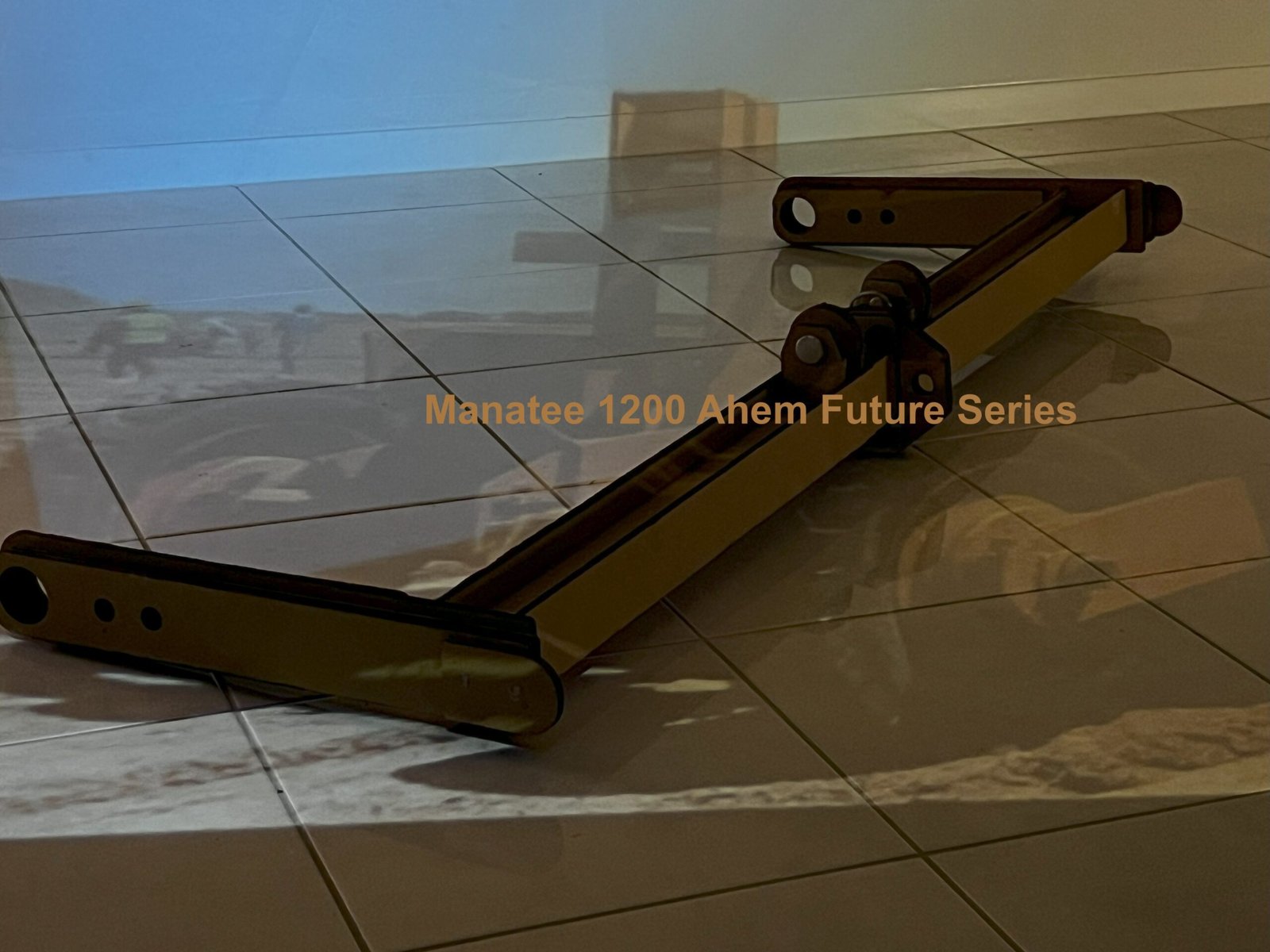

Rental (9) Ahem Future Series 1200 Bowl Lift Arm Assembly 1-9 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1200 Assembly 9 bowl lift arm 1200 series

1291 Part 116 Bowl lift arm 10mm 1200s
Rental 150 minutes / 3700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 540 x 230 millimetres.

1292 Part 117 Bowl ram hinge 10mm 1200s
Rental 300 minutes / 8600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1400 x 280 millimetres.

1293 Part 118 Bowl ram hinges 10mm 1200s
Rental 90 minutes / 1950 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 180 x 370 millimetres.

1294 Part 119 Bowl ram tabs 10mm 1200s
Rental 90 minutes / 1700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 150 x 340 millimetres.

1295 Part 121 Bowl wear plates 20mm 1200s
Rental 120 minutes / 2900 millimetres drawing line length / steel 350 grade plate 20 millimetres thickness / box of 550 x 190 millimetres.

1296 Part 121AB Bowl wear plates 20mm 1200s
Rental 120 minutes / 2400 millimetres drawing line length / steel 350 grade plate 20 millimetres thickness / box of 420 x 190 millimetres.

1297 Part 149 Roller disk mount 10mm 1200s
Rental 60 minutes / 700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 100 x 160 millimetres.

1298 Part 151 Roller sides 10mm 1200s
Rental 90 minutes / 1500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 100 x 470 millimetres.

1299 Part 152 Roller wheel 20mm 1200s
Rental 90 minutes / 1200 millimetres drawing line length / steel 350 grade plate 20 millimetres thickness / box of 100 x 360 millimetres.

Keywords: 1200 Series Scraper, Bowl Lift Arm, Engineering DXF Files, Industrial Steel Fabrication, Land Levelling Construction, Heavy Duty Industrial Scraper, Steel 350 Grade.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
