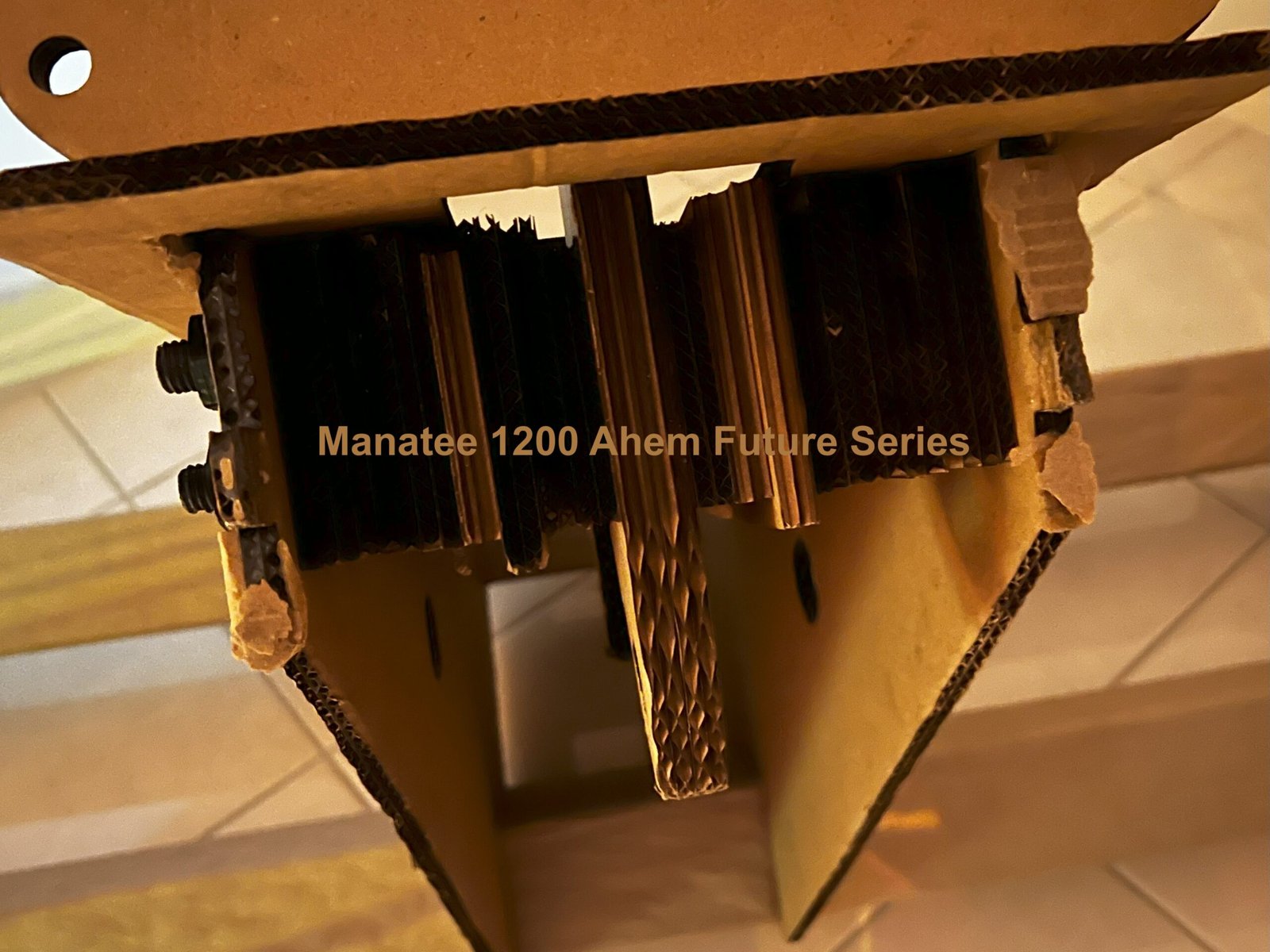

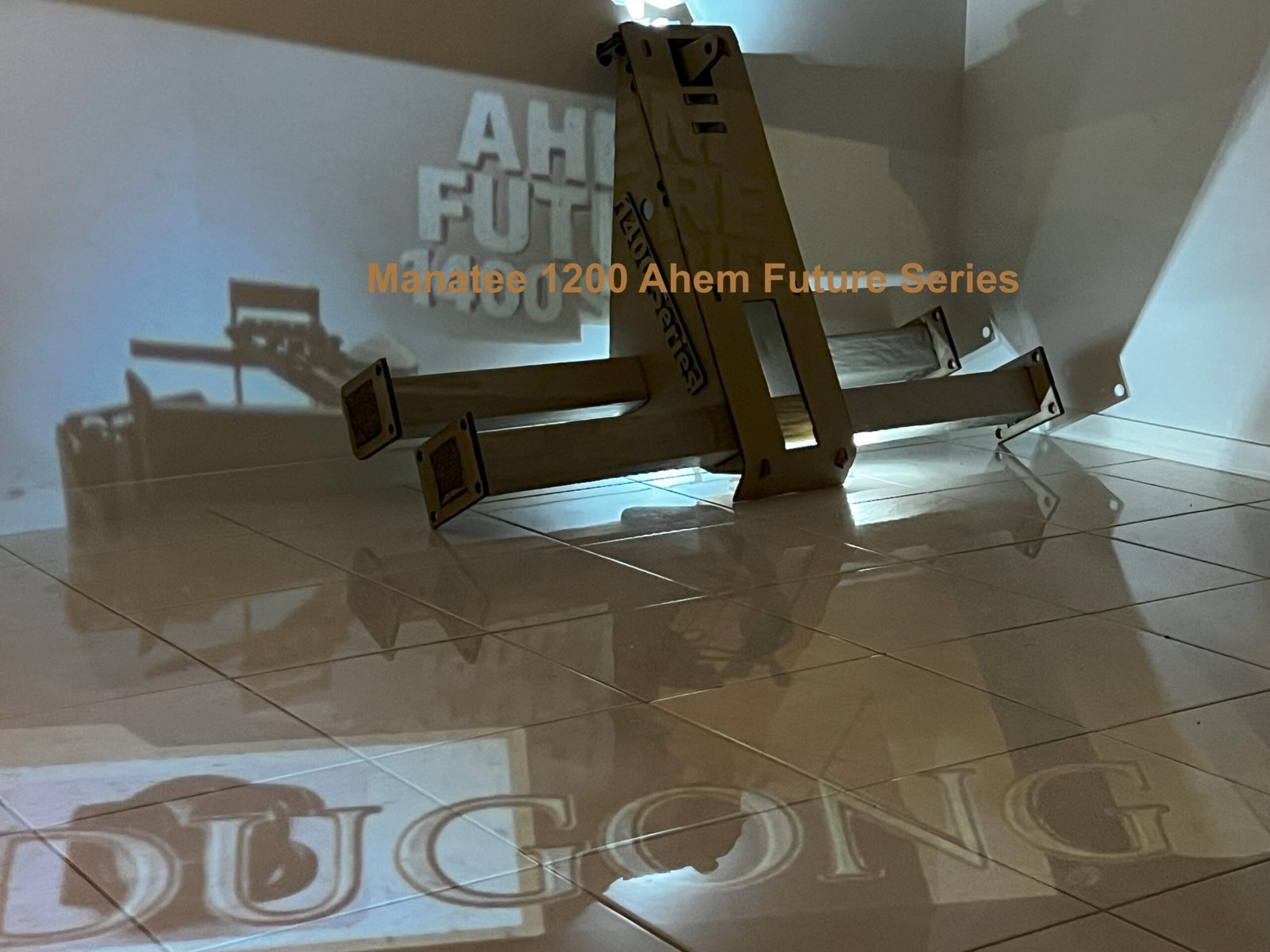

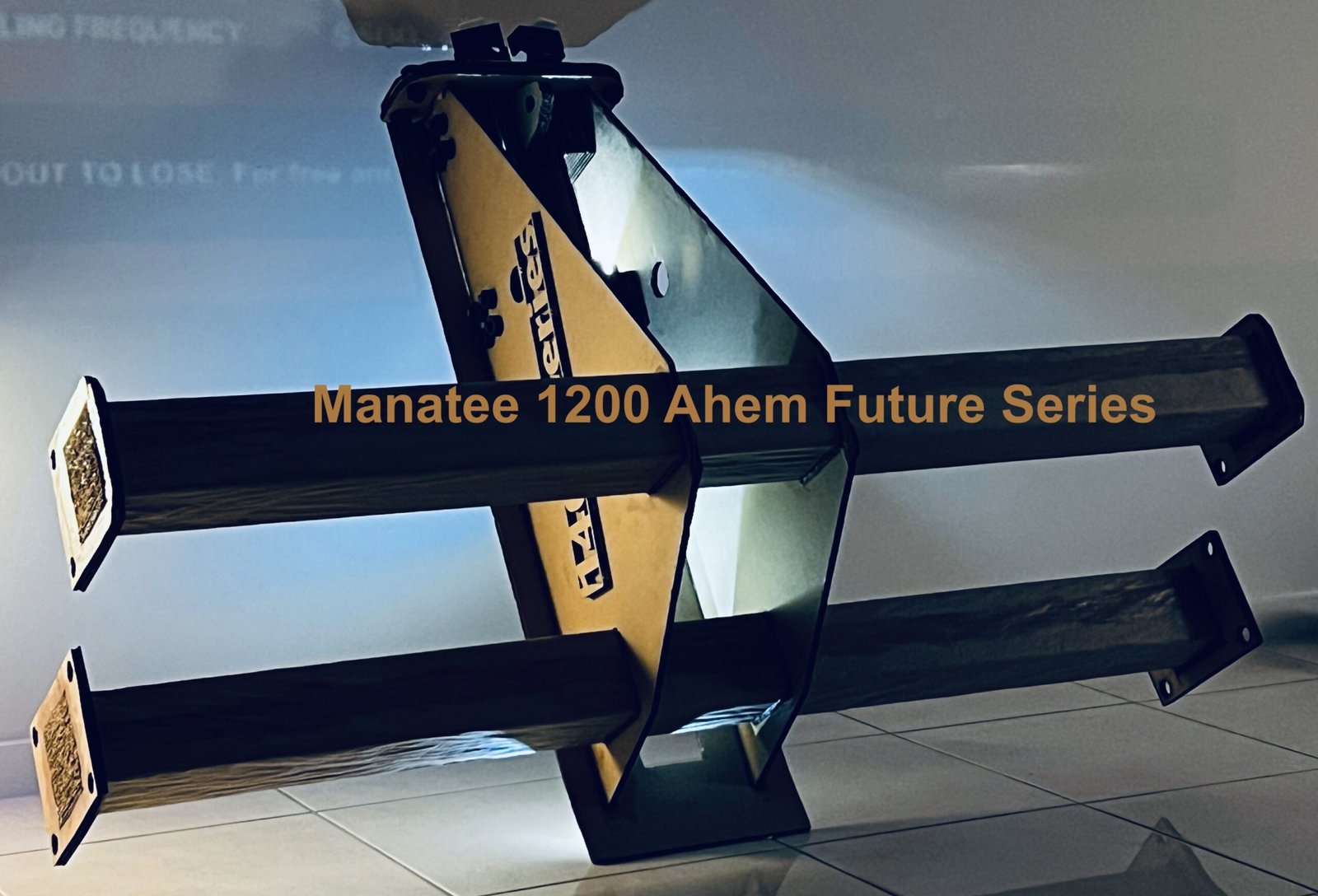

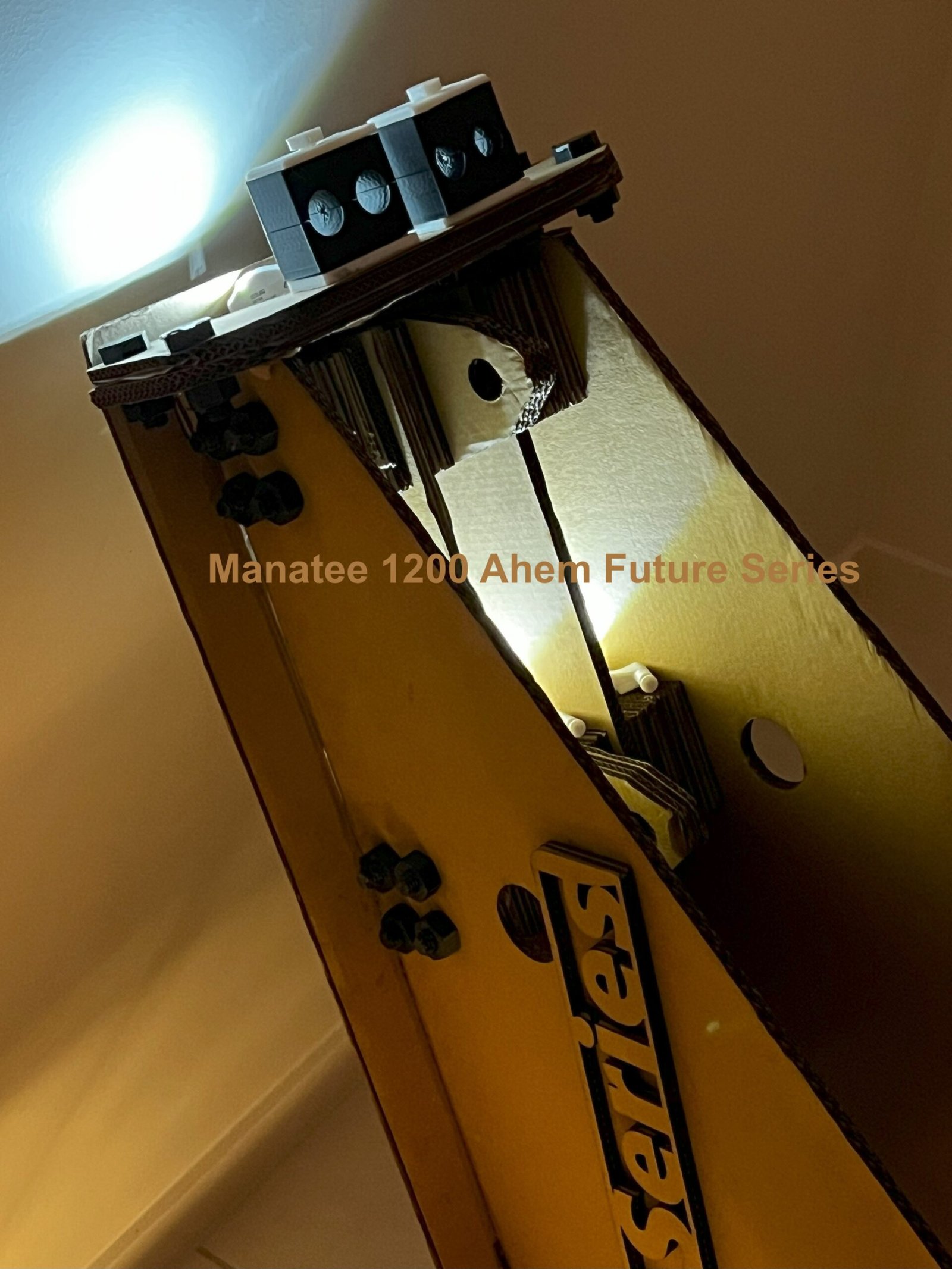

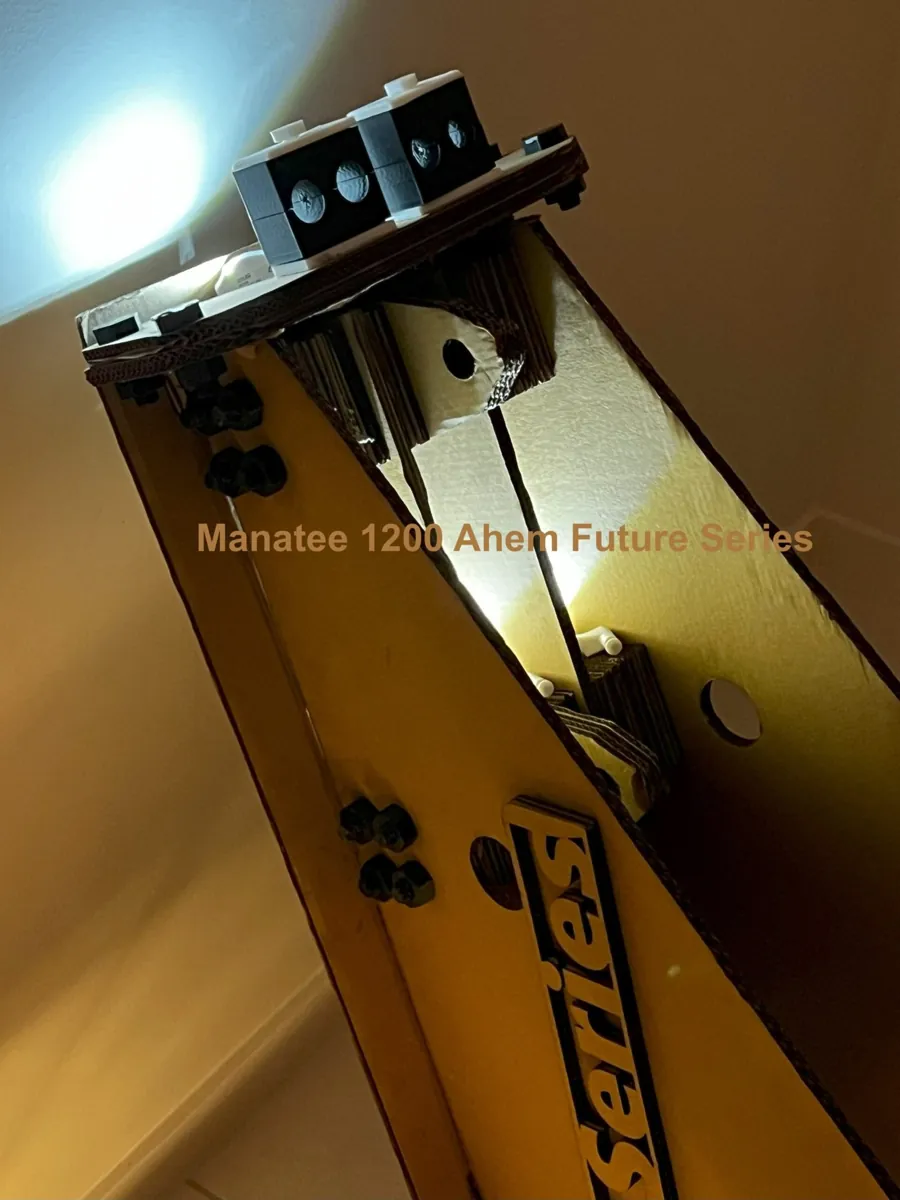

Rental (5) Ahem Future Series 1200 Front Lift Assembly 1-10 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1200 Assembly 5 front lift 1200 series

1251 Part 123 Cross beam plates 10mm 1200s
Rental 210 minutes / 5100 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 350 x 420 millimetres.

1252 Part 133 Lift boom front cap 10mm 1200s
Rental 120 minutes / 2100 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 340 x 240 millimetres.

1253 Part 134 Lifting boom 10mm 1200s
Rental 150 minutes / 3600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 930 x 440 millimetres.

1254 Part 134A Lifting boom 10mm 1200s
Rental 150 minutes / 3600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 930 x 440 millimetres.

1255 Part 134B Lifting boom name 10mm 1200s
Rental 240 minutes / 6400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 420 x 160 millimetres.

1256 Part 141 Ram lift spacers 10mm 1200s
Rental 120 minutes / 2500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 340 x 230 millimetres.

1257 Part 150 Roller plate 10mm 1200s
Rental 180 minutes / 4600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1010 x 310 millimetres.

1258 Part A 124 Double ram pack and ram hinges 10mm 1200s
Rental 330 minutes / 9400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 430 x 340 millimetres.

1259 Part B 124 Double ram pack and ram hinges 10mm 1200s
Rental 330 minutes / 9100 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 430 x 460 millimetres.

12510 Part C 124 Double ram pack and ram hinges 10mm 1200s
Rental 360 minutes / 10,990 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 510 x 460 millimetres.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
