Description
Windows compatible only. Refer to assemblies for part numbers.
Single Assembly on a USB drive.

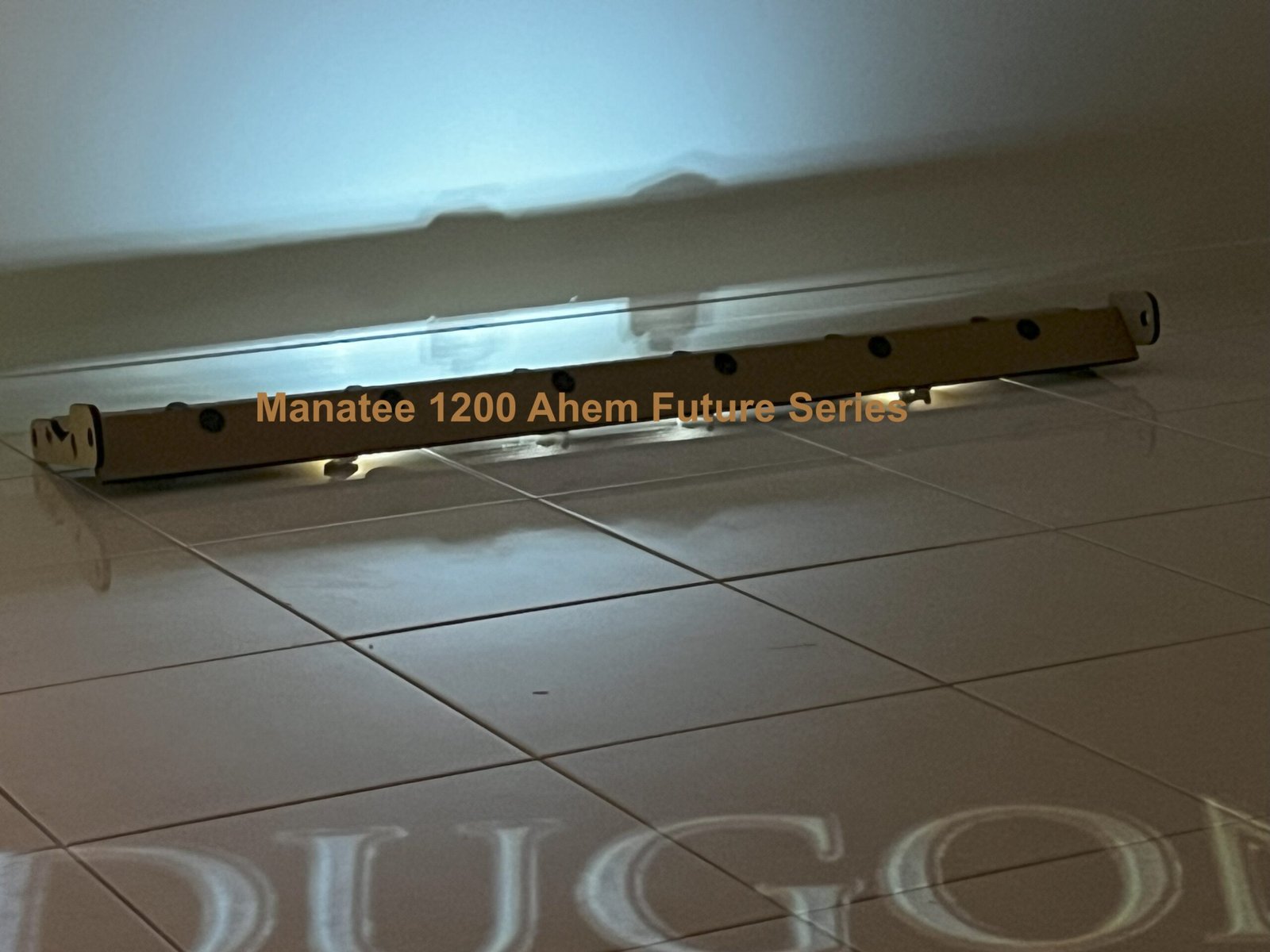

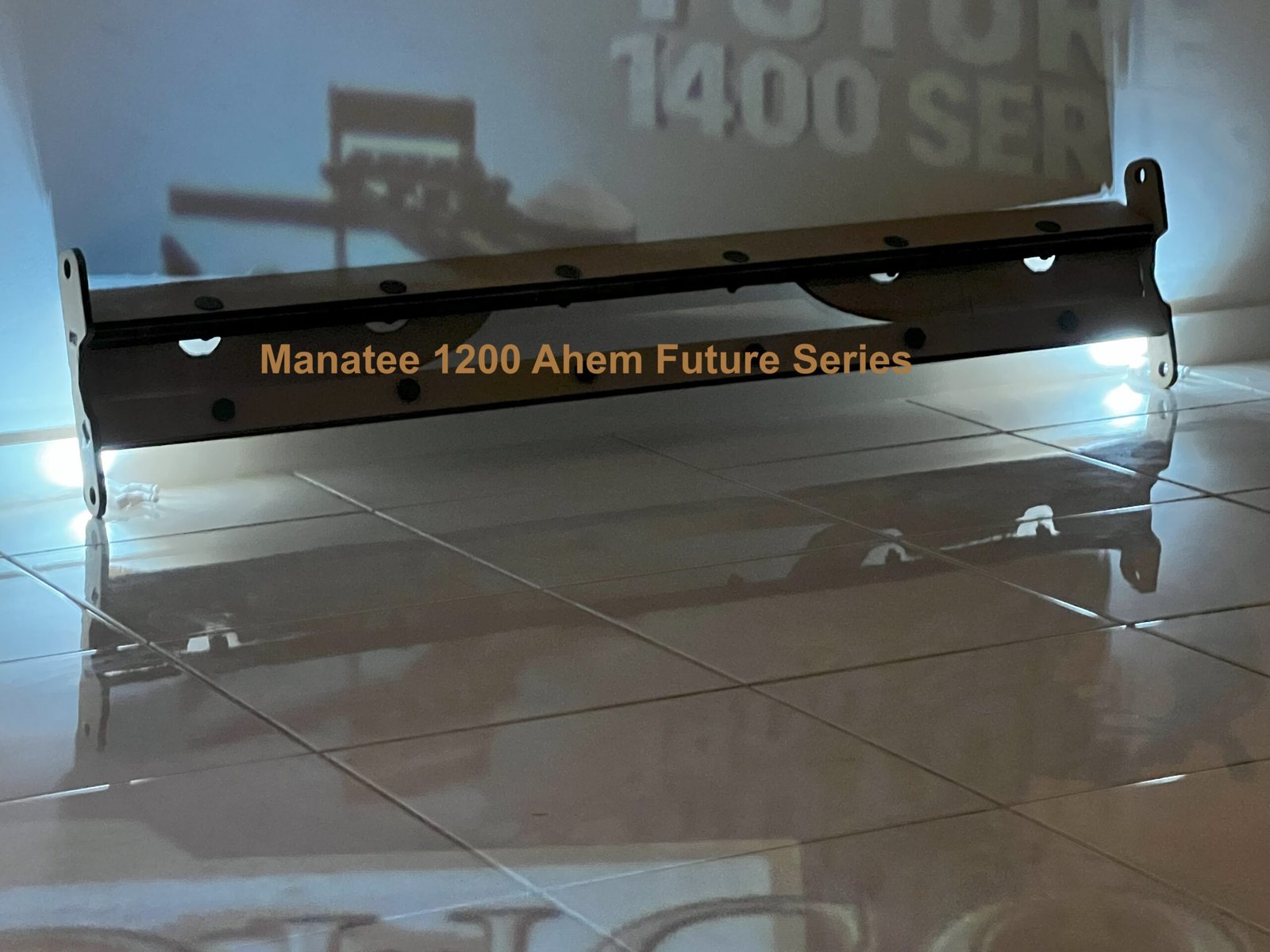

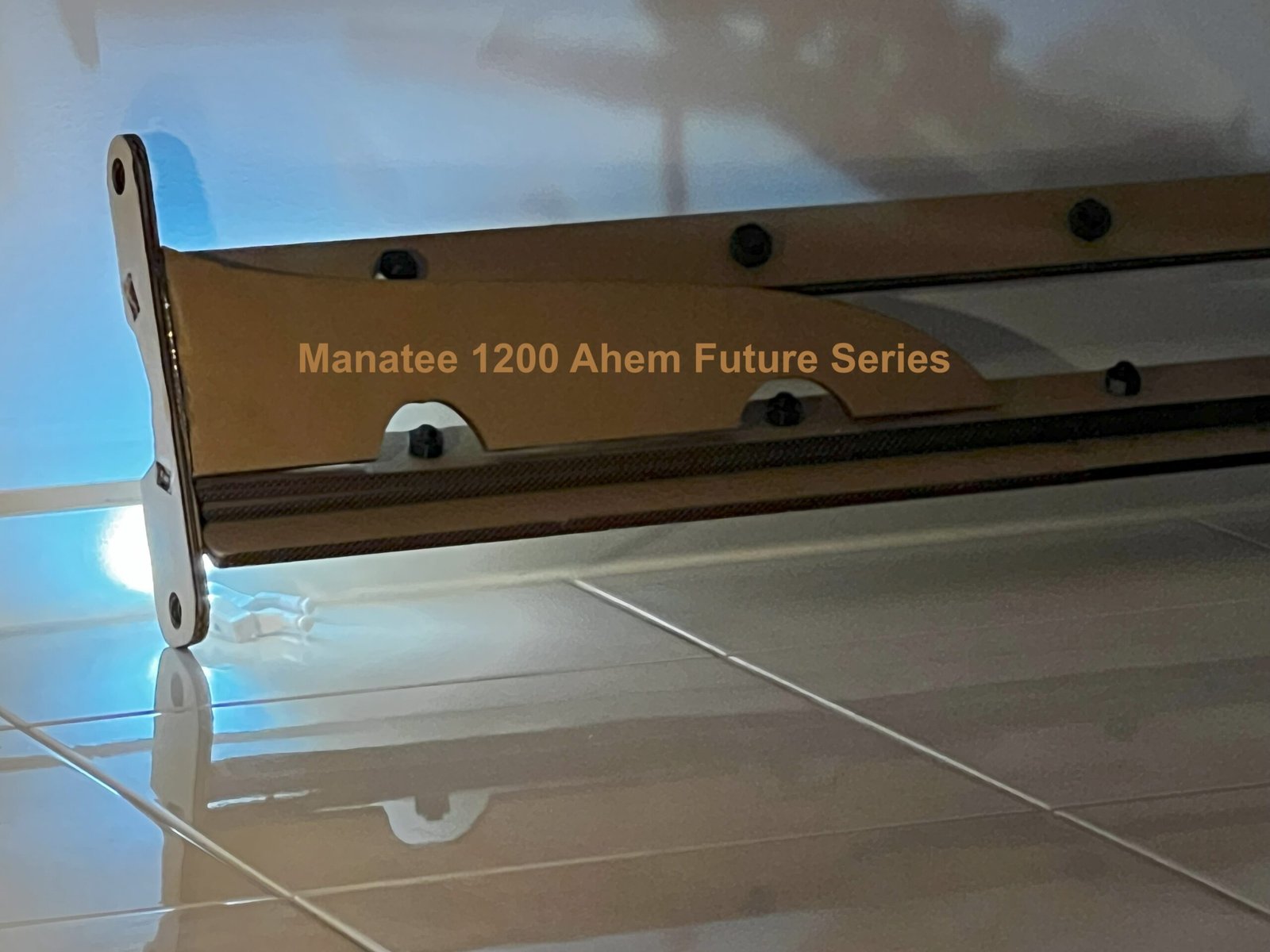

1200 Assembly 3 Board 1200 series
1231 Part 107 Blade 10mm 1200s
Rental 120 minutes / 3100 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 530 x 480 millimetres.
1232 Part 108 Blade brace 10mm 1200s
Rental 120 minutes / 2700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 530 x 480 millimetres.
1233 Part 109 Blade plate forward & rear 10mm 1200s
Rental 210 minutes / 5700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 530 x 480 millimetres.
1234 Part 110 Blade support plate 10mm 1200s
Rental 210 minutes / 5300 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 530 x 480 millimetres.
1235 Part 167 Wobble blade mount 10mm 1200s
Rental 90 minutes / 1990 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 530 x 480 millimetres.
Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.
· Photos can be used to assembly.
Rental Agreement – Engineering Drawings & Leaflets
This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.
Full Assembly Listings
Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
