Rental (10) Ahem Future Series 1200 Rear Tongue Assembly 1-4 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1200 Assembly 10 Rear and front tow tongue 1200 series

12101 Part 126 Draw bar side brace 10mm 1200s
Rental 90 minutes / 1200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 170 x 210 millimetres.

Keywords: Tow Tongue Assembly, Scraper Draw Bar, 1200 Series Scraper, Engineering DXF Files, Industrial Steel Fabrication, Land Levelling Construction.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

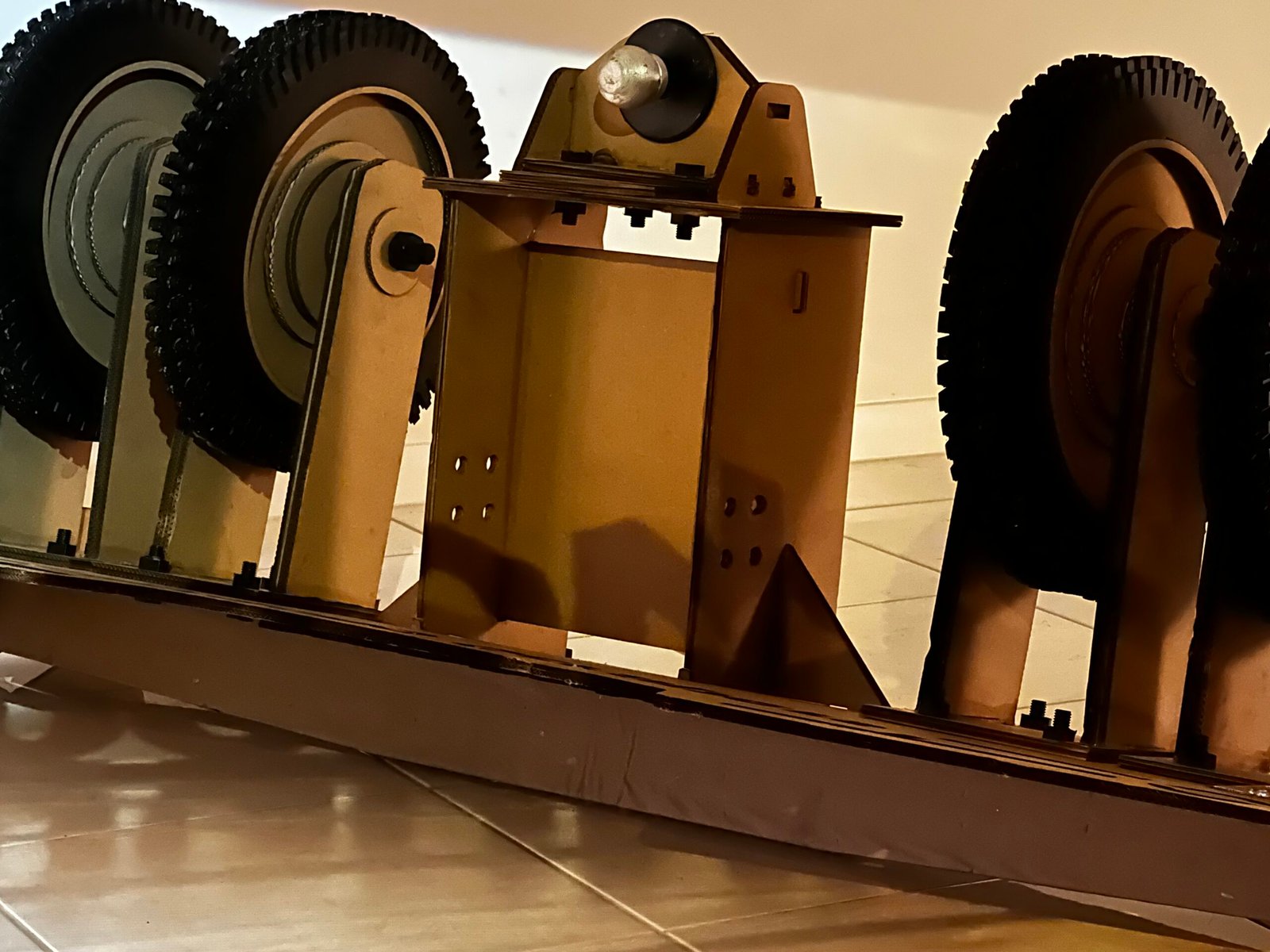

·       Photos can be used to assembly.
