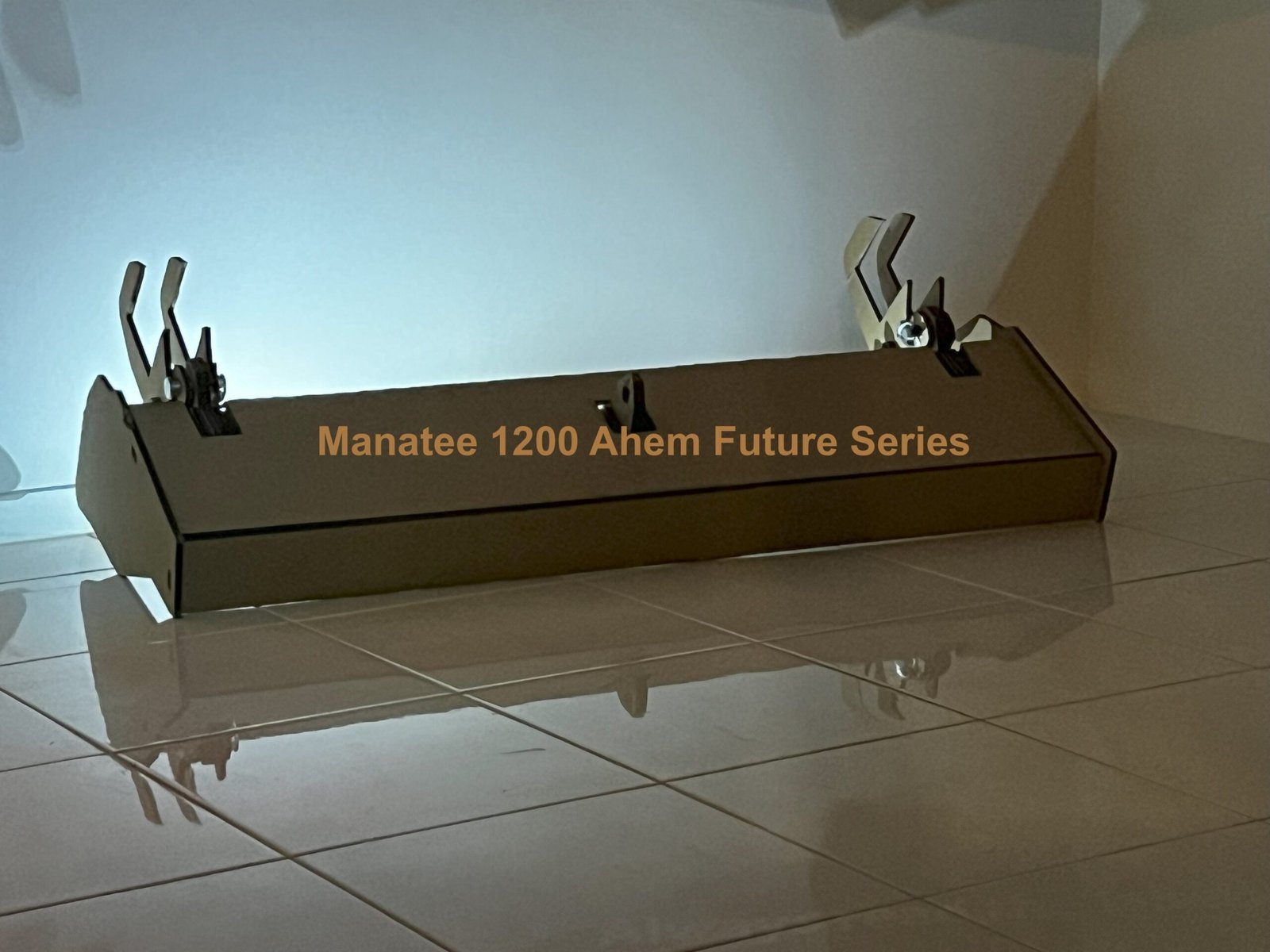

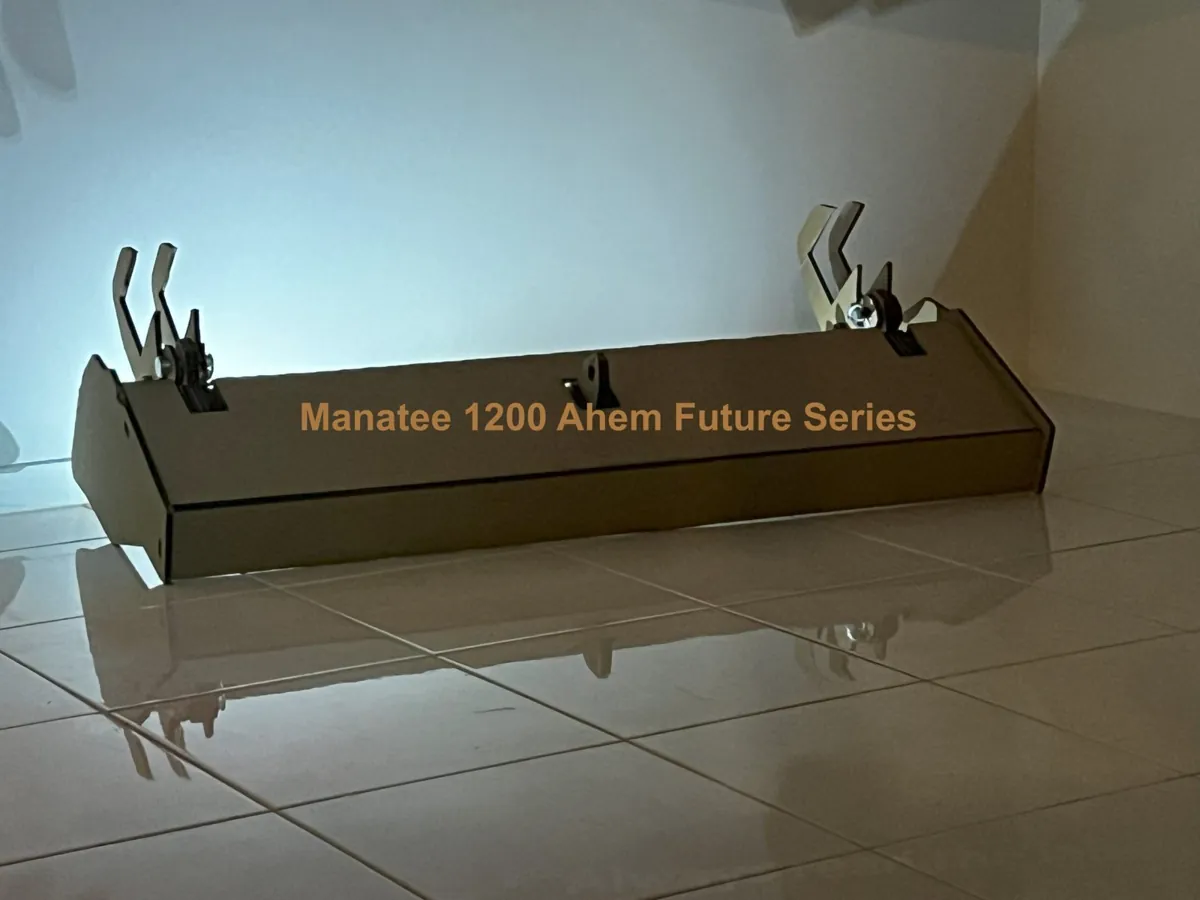

Rental (2) Ahem Future Series 1200 Apron B Assembly 1-8 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

1200 Assembly 2 Apron B 1200 series

1221 Part 101B Apron hinge B plate 10mm 1200s
Rental 120 minutes / 3700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1270 x 300 millimetres.

1222 Part 101C Apron ram brace plate 10mm 1200s
Rental 120 minutes / 4000 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 280 x 180 millimetres.

1223 Part 102 Apron hinge 10mm 1200s
Rental 120 minutes / 4300 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 280 x 730 millimetres.

1224 Part 103B Apron plate 10mm 1200s
Rental 120 minutes / 2700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1260 x 130 millimetres.

1225 Part 105 Apron side 10mm 1200s
Rental 120 minutes / 2900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 560 x 540 millimetres.

1226 Part A 111B 138B 139B 140B 140C 10mm Apron hinge 1200s
Rental 120 minutes / 4500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 360 x 310 millimetres.

1227 Part B 111B 138B 139B 140B 140C 10mm Apron hinge 1200s
Rental 120 minutes / 4200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 650 x 170 millimetres.

1228 Part C 111B 138B 139B 140B 140C 10mm Apron hinge 1200s
Rental 120 minutes / 8400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 670 x 340 millimetres.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
