Rental (2) Ahem Future Series Dugong 1400 Apron B Series Assembly 1-8 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

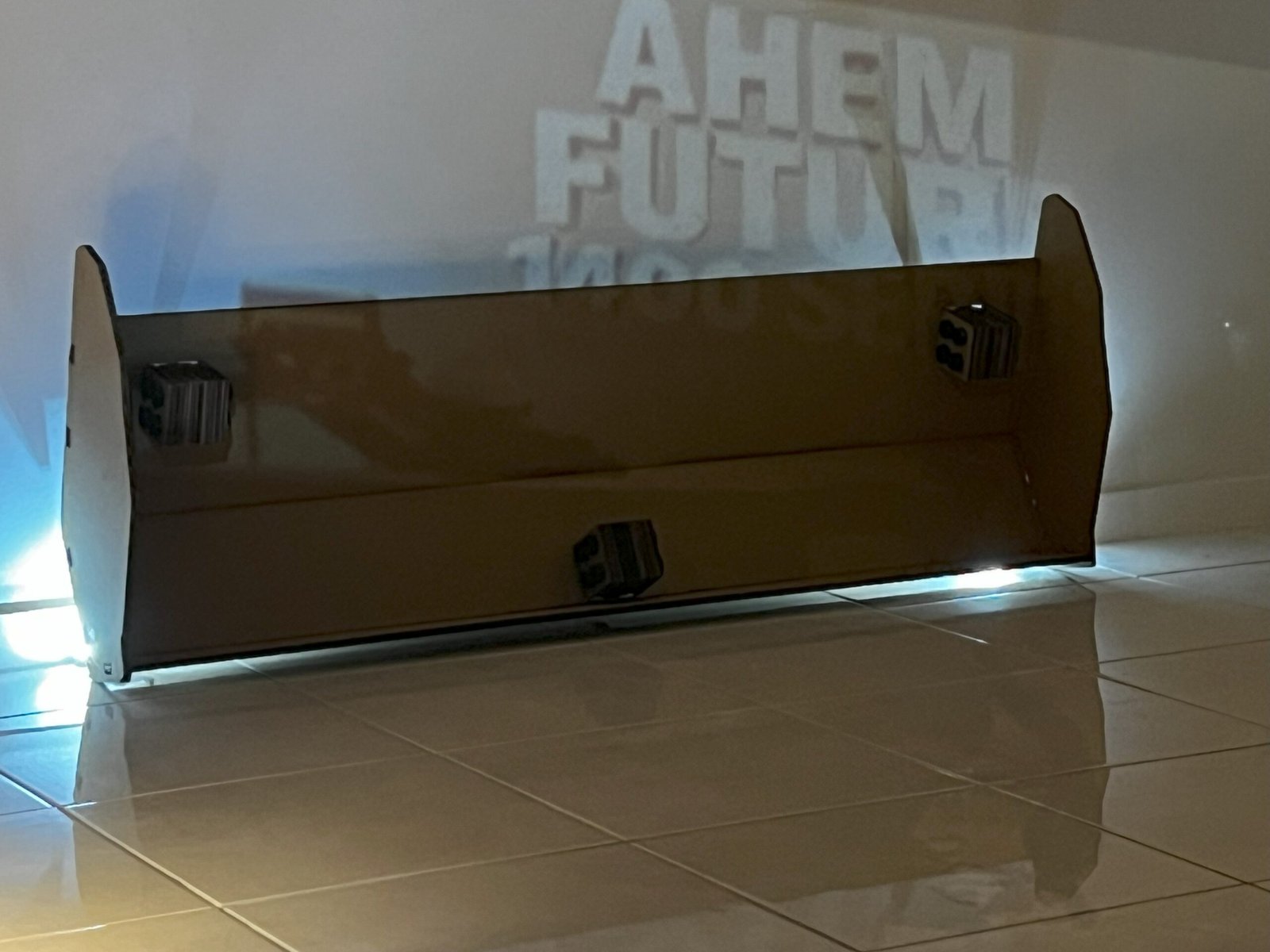

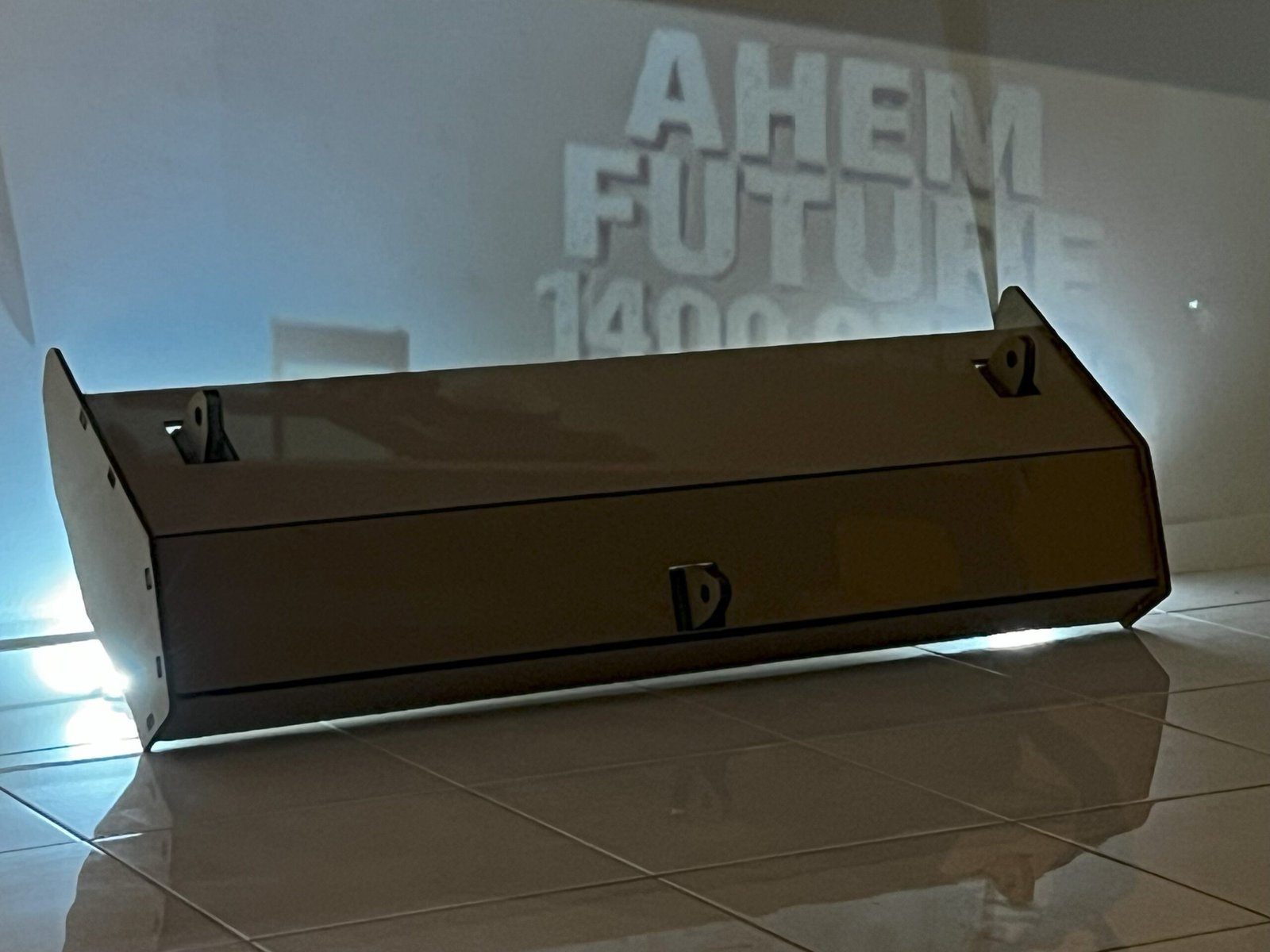

1400 Assembly 2 Apron B 1400 series

1421 Part 101B Apron hinge B plate 10mm 1400s
Rental 150 minutes / 3900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1370 x 310 millimetres.

1422 Part 101C Apron ram brace plate 10mm 1400s
Rental 180 minutes / 4300 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 260 x 175 millimetres.

1423 Part 102 Apron hinge 10mm 1400s
Rental 240 minutes / 6500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 260 x 740 millimetres.

1424 Part 103B Apron plate 10mm 1400s
Rental 150 minutes / 3400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 1355 x 135 millimetres.

1425 Part 105 Apron side 10mm 1400s
Rental 120 minutes / 2800 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 570 x 560 millimetres.

1426 Part A 111B 138B 139B 140B 140C 10mm Apron hinge 1400s
Rental 180 minutes / 4500 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 350 x 300 millimetres.

1427 Part B 111B 138B 139B 140B 140C 10mm Apron hinge 1400s
Rental 180 minutes / 4200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 670 x 175 millimetres.

1428 Part C 111B 138B 139B 140B 140C 10mm Apron hinge 1400s
Rental 300 minutes / 8400 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 670 x 335 millimetres.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
