Rental (7) Ahem Future Series 900 Front Draw bar Tongue Series Assembly 1-3 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

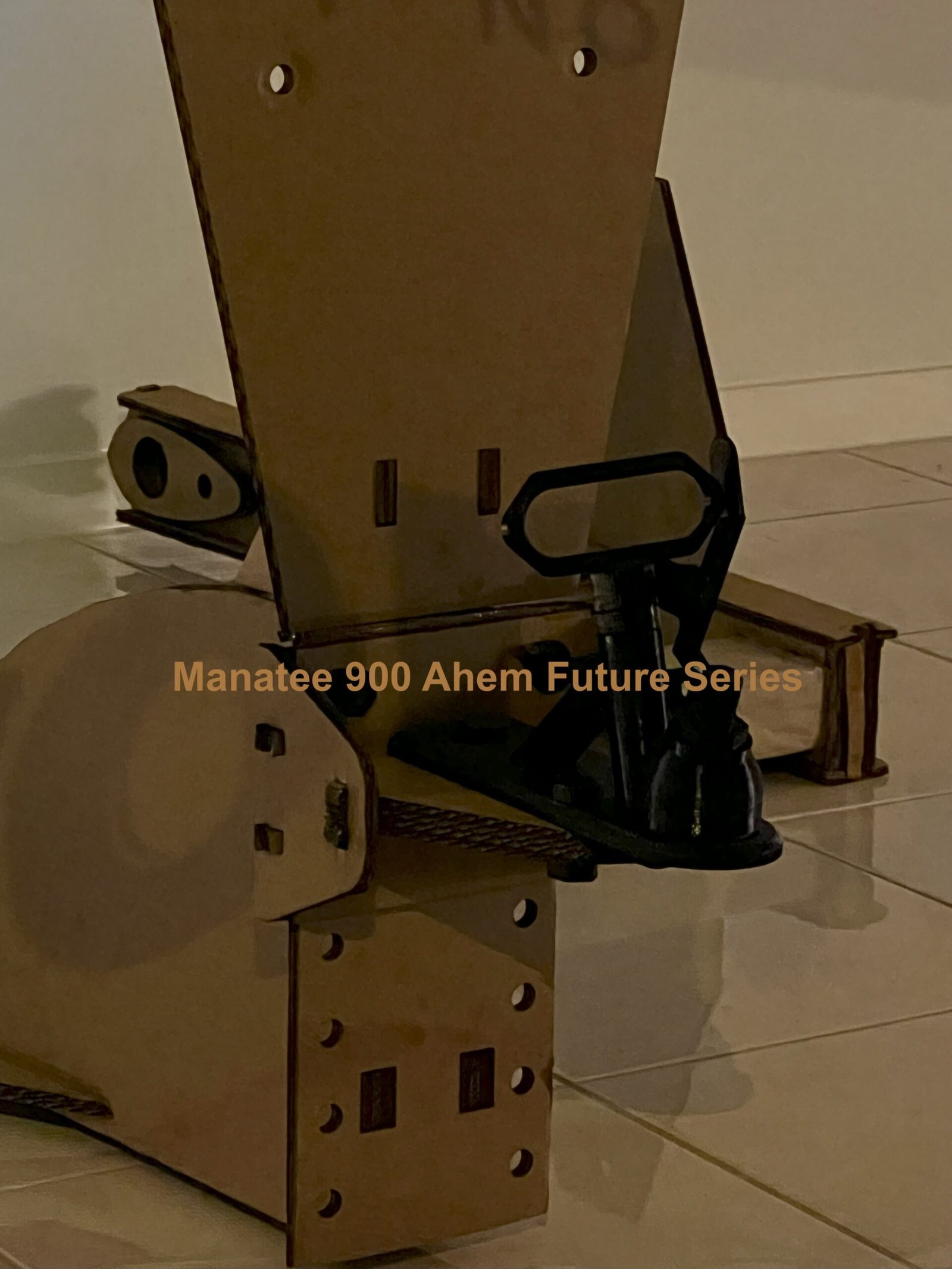

900 Assembly 7 front draw bar tongue 900 series

971 Part 126 Draw bar side brace 10mm 900s
Rental 90 minutes / 1200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 170 x 230 millimetres.

972 Part 157 Draw bar tongue 10mm 900s
Rental 90 minutes / 1200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 240 x 180 millimetres.

973 Part 159 Draw bar tongue 10mm 900s
Rental 90 minutes / 1700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 440 x 200 millimetres.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.
