Rental (4) Ahem Future Series 900 Bowl Series Assembly 1-6 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

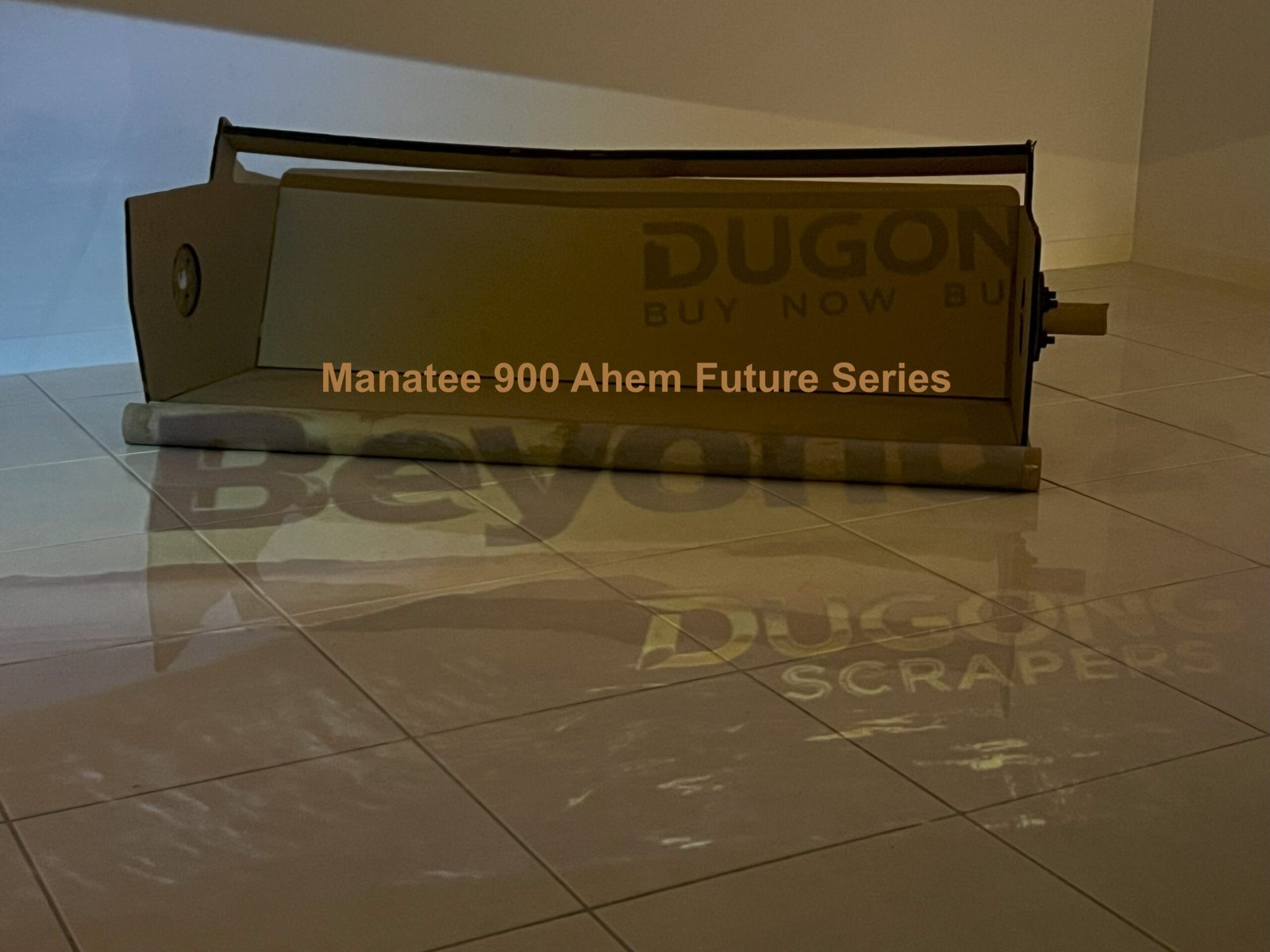

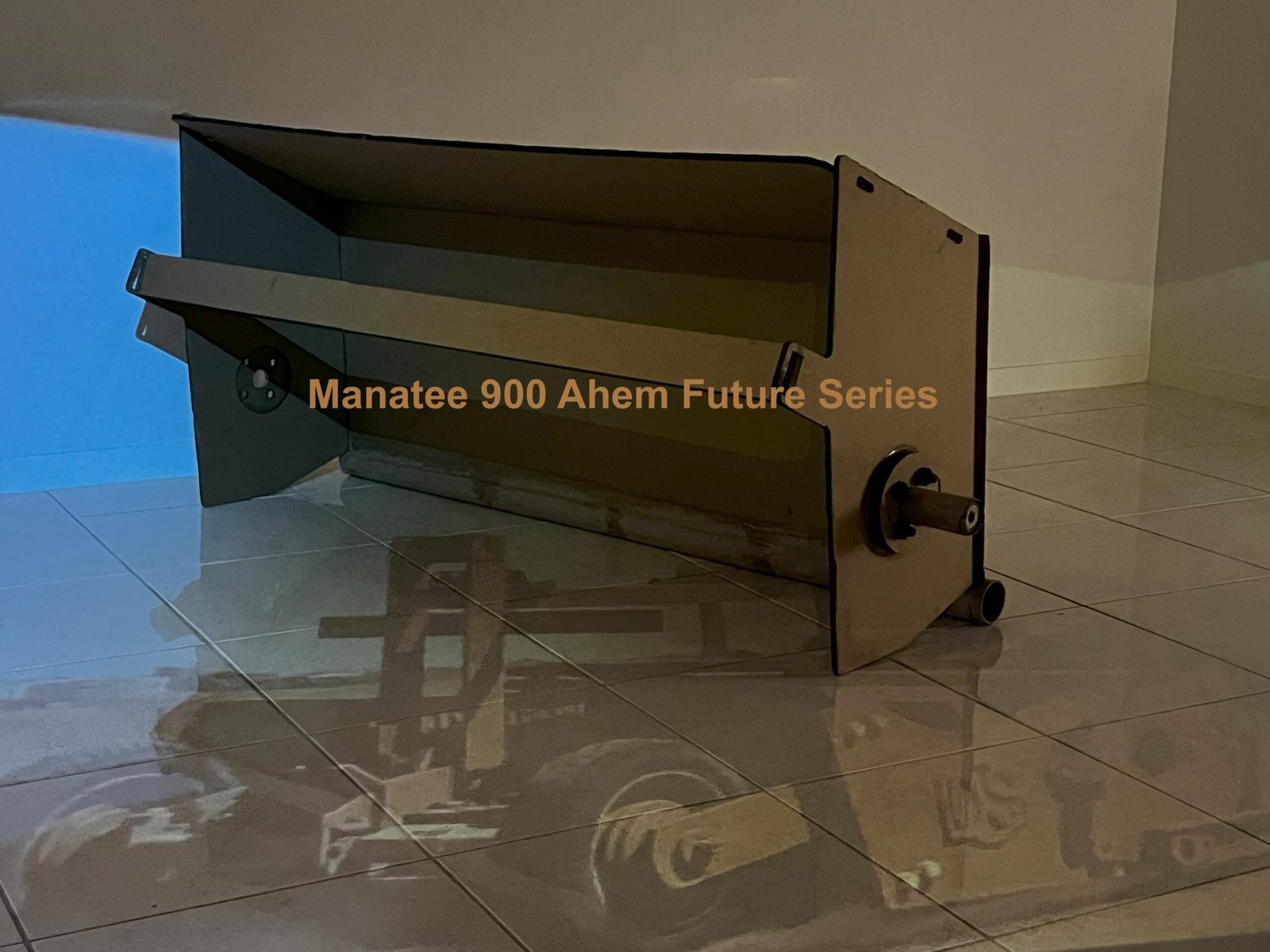

900 Assembly 4 Bowl 900 series

941 Part 112 Bowl back plate 10mm 900s
Rental 120 minutes / 2600 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 930 x 440 millimetres. Custom order this part using custom listing 3 with the part number 941.

942 Part 113 Bowl cross bar 20mm 900s
Rental 90 minutes / 1950 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 930 x 100 millimetres. Custom order this part using custom listing 2 with the part number 942.

943 Part 114 Bowl disk outside 10mm 900s
Rental 150 minutes / 3800 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 400 x 350 millimetres. Custom order this part using custom listing 4 with the part number 943.

944 Part 115 Bowl floor 10mm 900s
Rental 150 minutes / 3200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 930 x 540 millimetres. Custom order this part using custom listing 4 with the part number 944.

945 Part 120 Bowl side 10mm 900s
Rental 120 minutes / 2900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 720 x 500 millimetres. Custom order this part using custom listing 3 with the part number 945.

946 Part 120A Bowl side 10mm 900s
Rental 120 minutes / 2900 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 720 x 500 millimetres. Custom order this part using custom listing 3 with the part number 946.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.
