Rental (7) Ahem Future Series Dugong 1400 Front Draw Bar Tongue Series Assembly 1-3 all files .dxf

Description

Windows compatible only. Refer to assemblies for part numbers.

Single Assembly on a USB drive.

Drawings have been nested to ensure a left and right hand method for metal and the small natural curving from cutting metal, assists overall fabrication alignment.

·       Photos can be used to assembly.

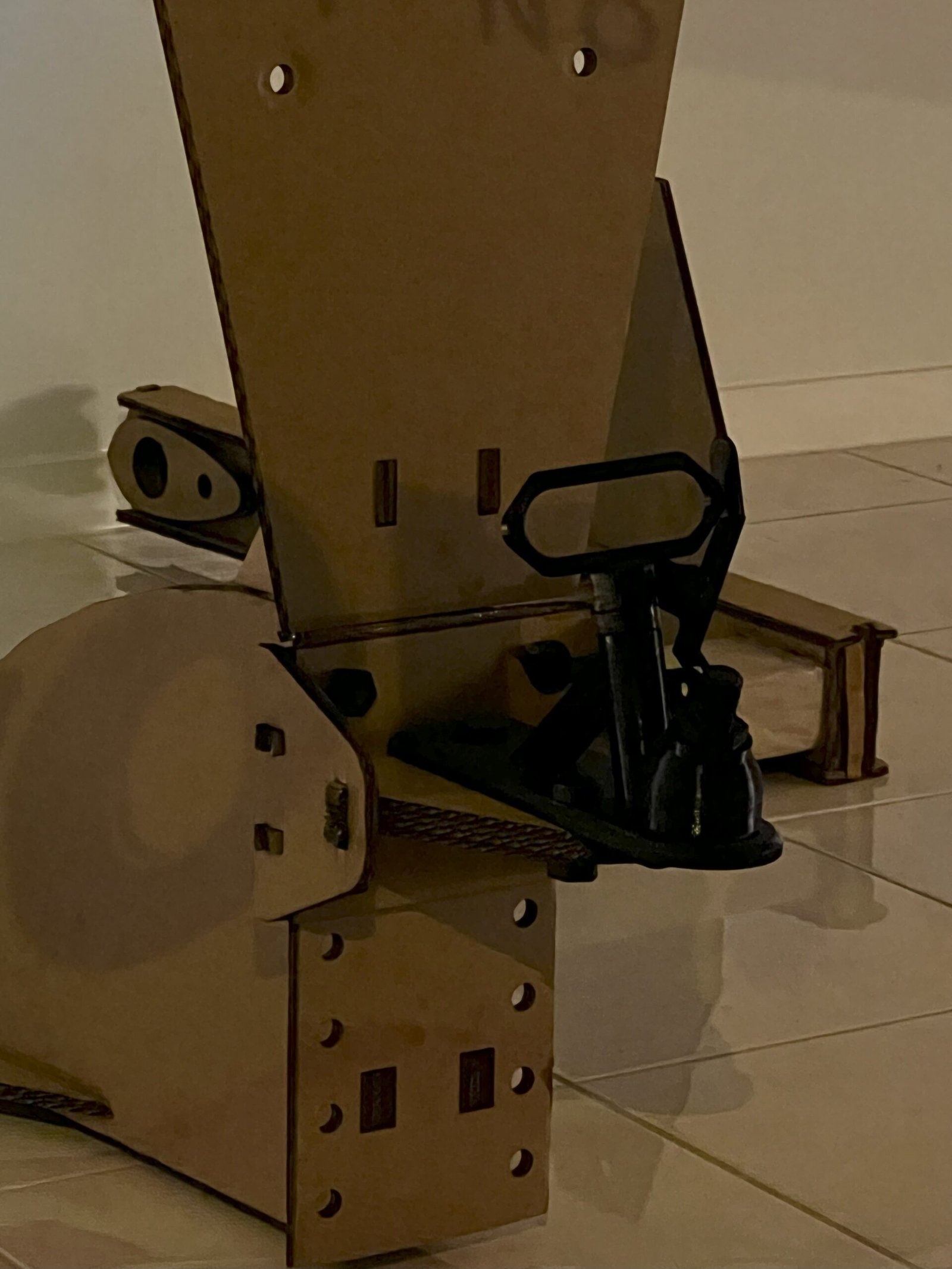

1400 Assembly 7 front draw bar tongue 1400 series

1471 Part 126 Draw bar side brace 10mm 1400s
Rental 90 minutes / 1200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 170 x 220 millimetres.

1472 Part 157 Draw bar tongue 10mm 1400s
Rental 90 minutes / 1200 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 230 x 170 millimetres.

1473 Part 159 Draw bar tongue 10mm 1400s
Rental 90 minutes / 1700 millimetres drawing line length / steel 350 grade plate 10 millimetres thickness / box of 440 x 190 millimetres.

Rental Agreement – Engineering Drawings & Leaflets

This Rental Agreement applies to all Dugong Scrapers engineering drawings, documents, and leaflets made available under free listing access and after purchase.

Full Assembly Listings

Each full assembly rental includes 15 days of access from the time you activate. Opening the individual assembly files for the first time activates the countdown timer to expiry. During this rental period, the files may be viewed and used in accordance with the licence terms provided. Access to an assembly file set will automatically expire after 15 days. Individual parts contained within the assembly may have different rental timer periods, and access to those files will end once their individual timers expire.
